Basic Information
Certification
CCC, CE, RoHS, FCC, ETL
Item Type
High Mast Lights
Surface Treatment
Galvanized with Powder-Coated
Luminous Efficacy
120 Lm/W
Packaging & Delivery
Package Size
62.00cm * 80.00cm * 100.00cm
Product Presentation
Configuration Details

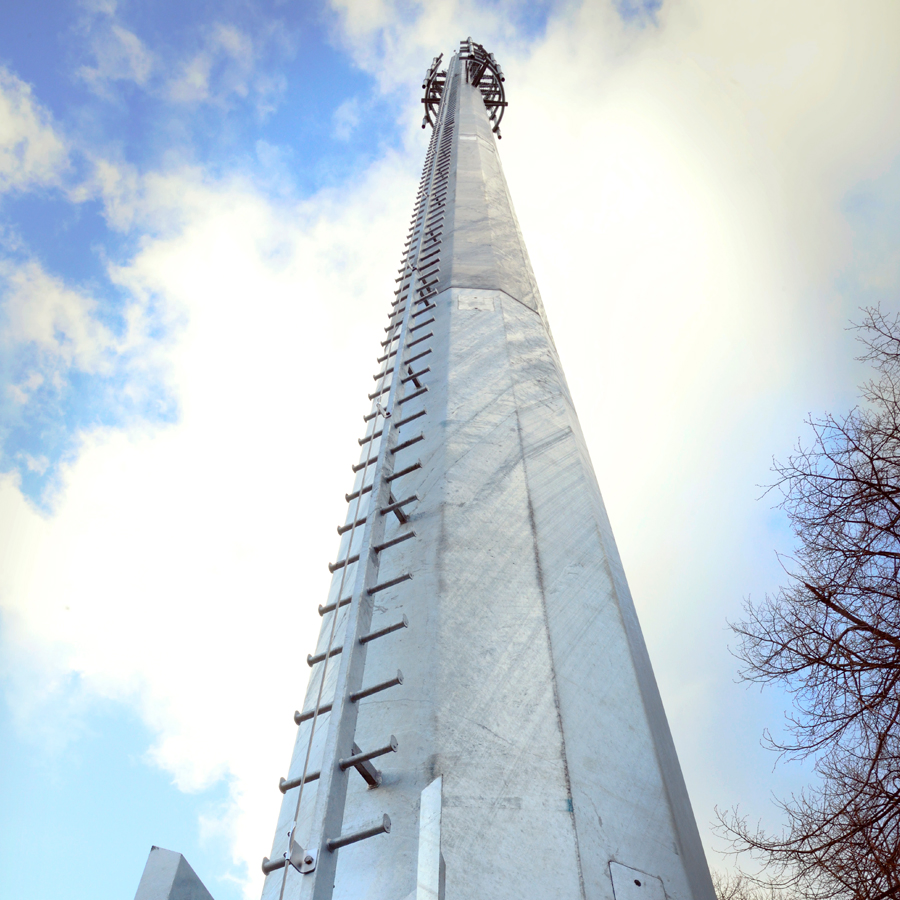

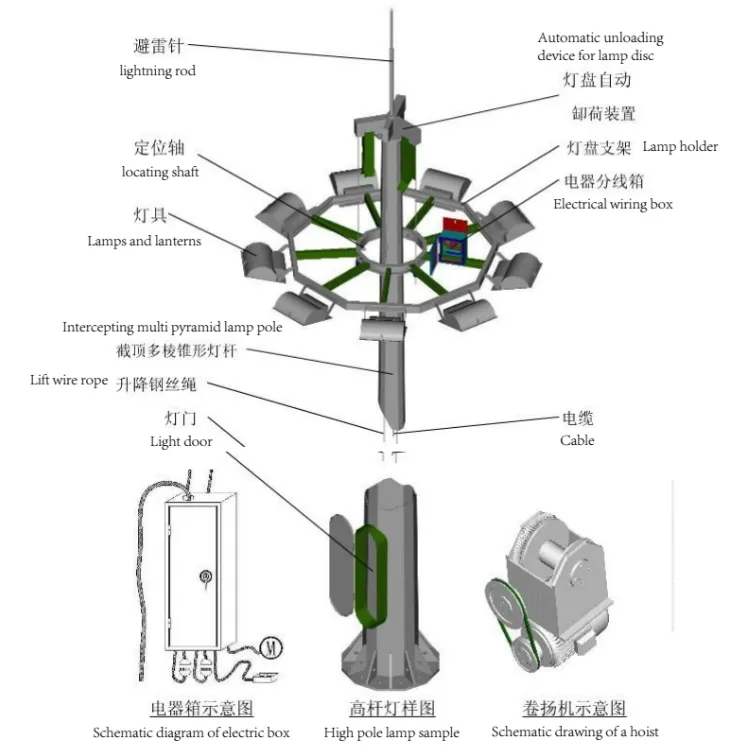

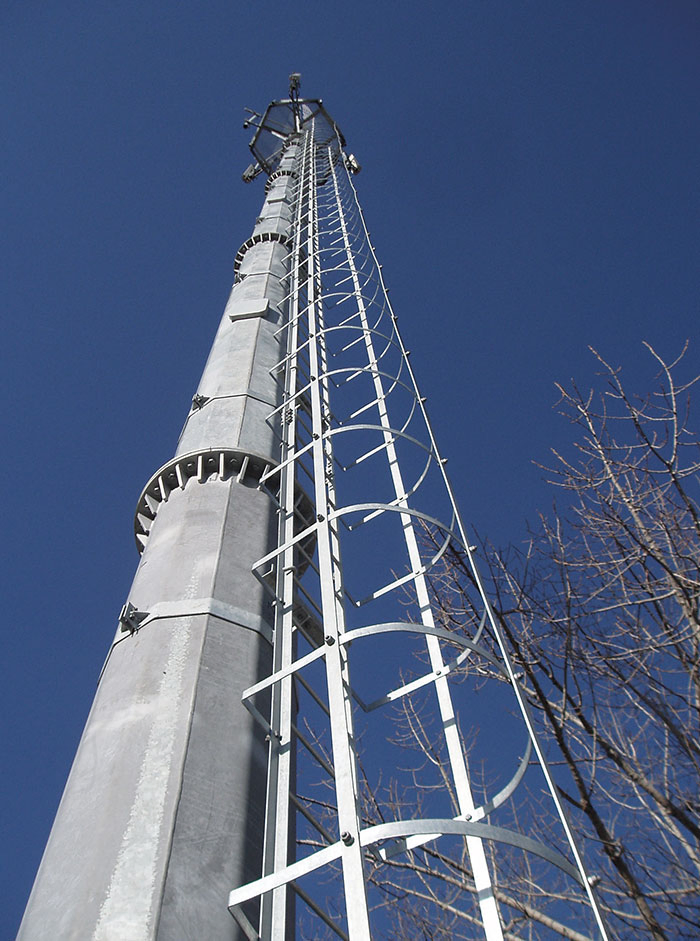

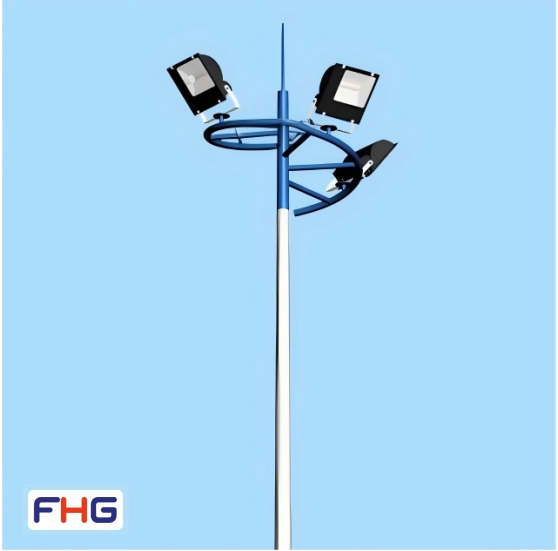

1. Pole Structure: Dodecagon or octagonal conical pole made of high-strength steel plate. Standard heights are 25m, 30m, and 35m, designed for wind resistance up to 60m/s.
2. Material Treatment: Decorative materials primarily use steel and steel pipes. All posts and lamp plates are hot-dip galvanized for maximum durability.
3. Lifting System: Electric lifting system includes motor, winch, and galvanized steel wire ropes. Rising speed is 3 to 5 meters per minute.
4. Auto-Lock System: Guiding and unloading system ensures the lamp plate remains stable during lifting and automatically locks via hooks when in position.

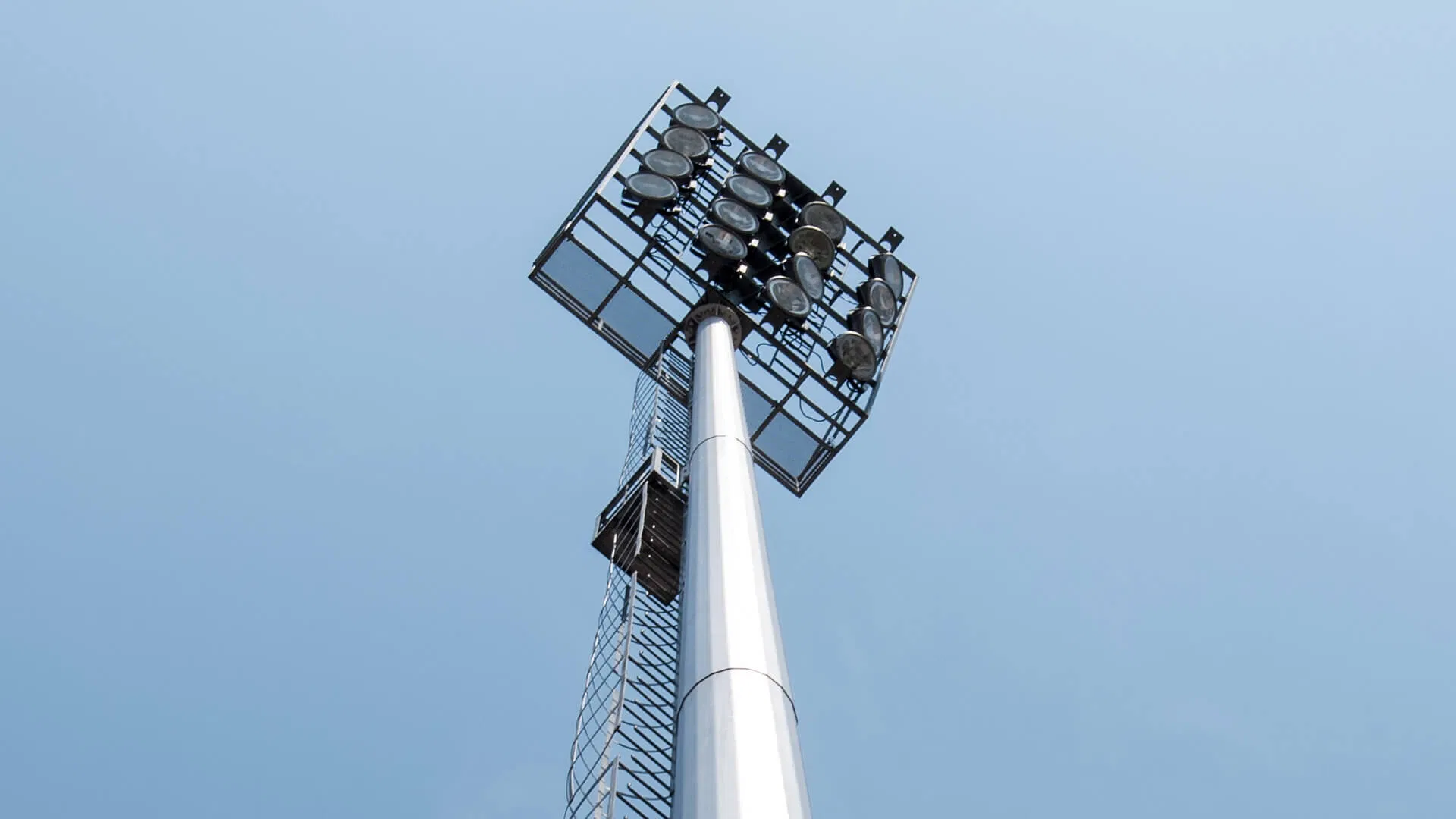

5. Electrical System: Equipped with 6 to 24 lamps (up to 1000W) or LED floodlights. Computer time controllers manage switching and partial illumination.
6. Protection: Integrated 1.5m lightning rod at the top with a dedicated grounding system at the foundation.
Technical Data Sheet
| Light source height | 3m - 30m |
| Material | Hot rolled steel, Q235, Q345 |
| Section Length | Within 16m once forming |
| Thickness | 2.5mm - 20mm |
| Power Range | 30W - 180W LED / 150W - 400W HPS |
| Surface treatment | Galvanized with powder-coated |
| Sealing Grade | IP65 International Standard |
Frequently Asked Questions
Can you produce according to custom samples?
Yes, we can produce based on your physical samples or technical drawings, including building necessary molds and fixtures.
What is the typical lead time for an order?
Typically, it takes about 25 to 35 days after sample confirmation and receipt of advance payment, depending on the item and quantity.
How are the products packed for international shipping?
Goods are generally packed in neutral cartons. Fragile items are reinforced with wooden frames to ensure safety during transit.
What are the available payment terms?
We accept T/T and irrevocable L/C at sight. Regular orders usually require a 30% deposit with full payment before delivery.
Is there a Minimum Order Quantity (MOQ)?
We maintain a low MOQ; even a single piece is available for sample checking and quality verification.
How do you handle post-sale quality issues?
If any issues occur, please provide photos of the problems. We will evaluate and provide a satisfactory solution within 24 hours.
