Basic Specifications
Item Name:LED Post Top Lighting
Power:30W - 200W Options
Material:Die Casting Aluminum + PC Lens + Tempered Glass
IP Rating:IP66 / IK08
Input Voltage:100-277VAC 50/60Hz
Certification:CE, EMC, LVD, RoHS
LED Chips:SMD3030 / SMD5050
Warranty:5 / 7 Years
Product Description

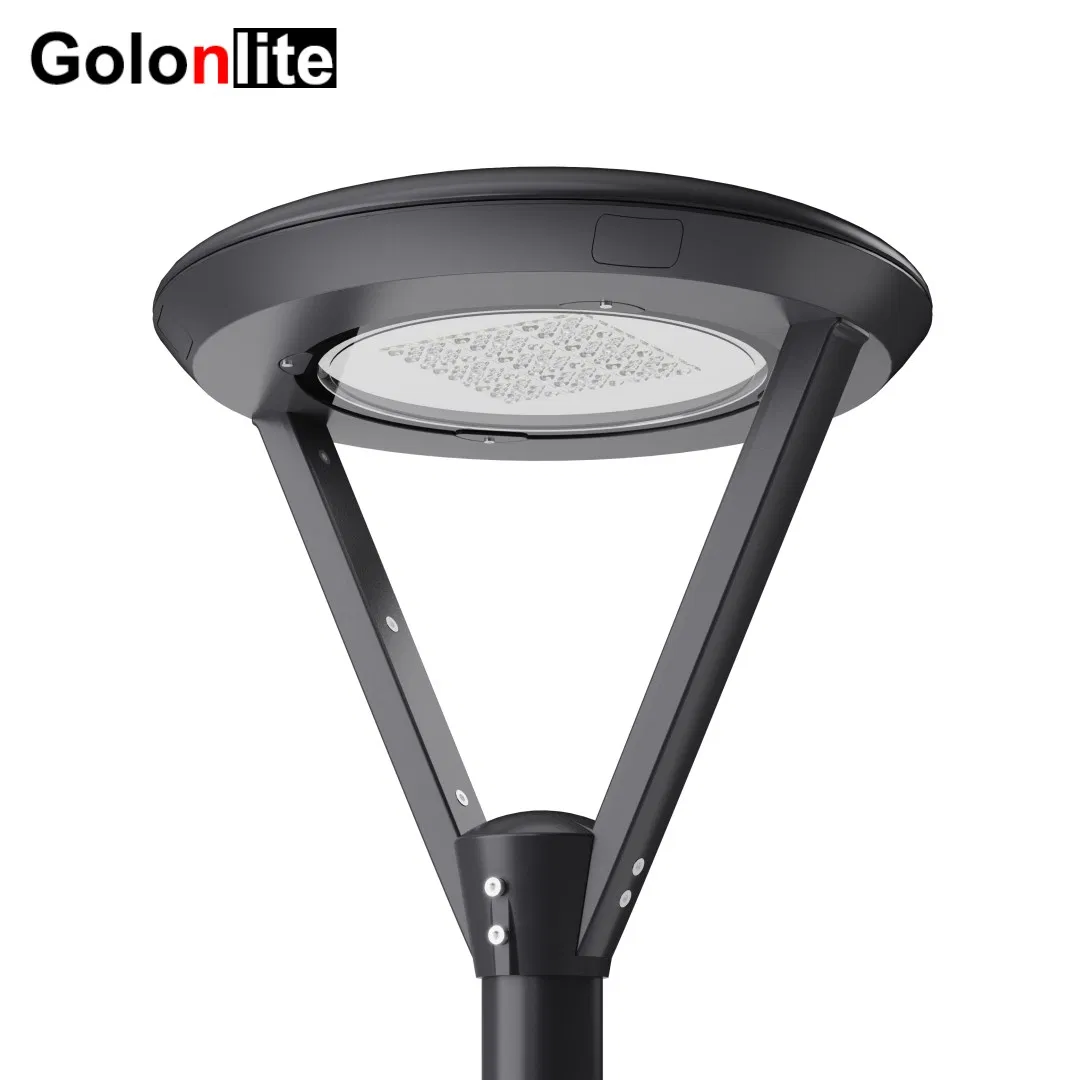

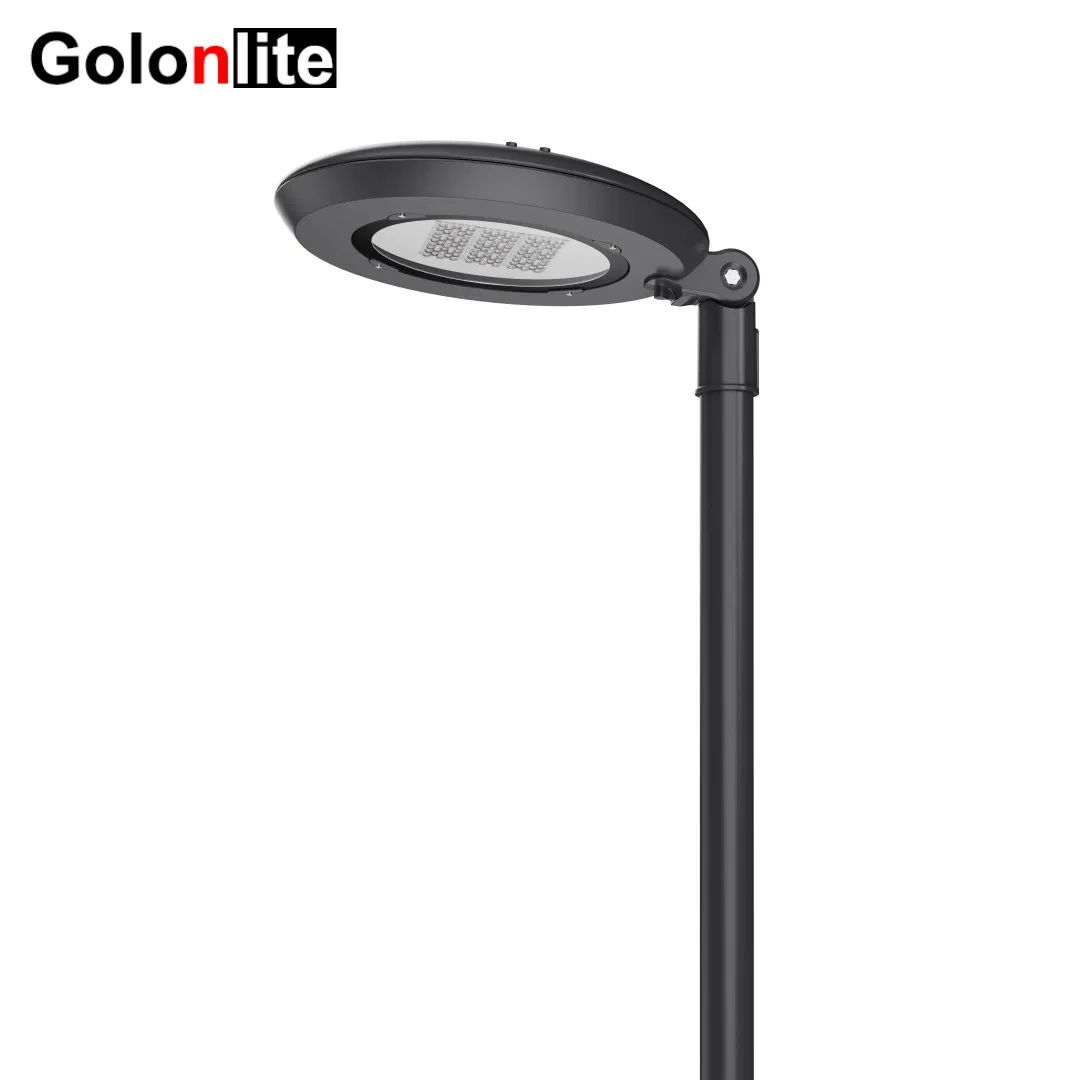

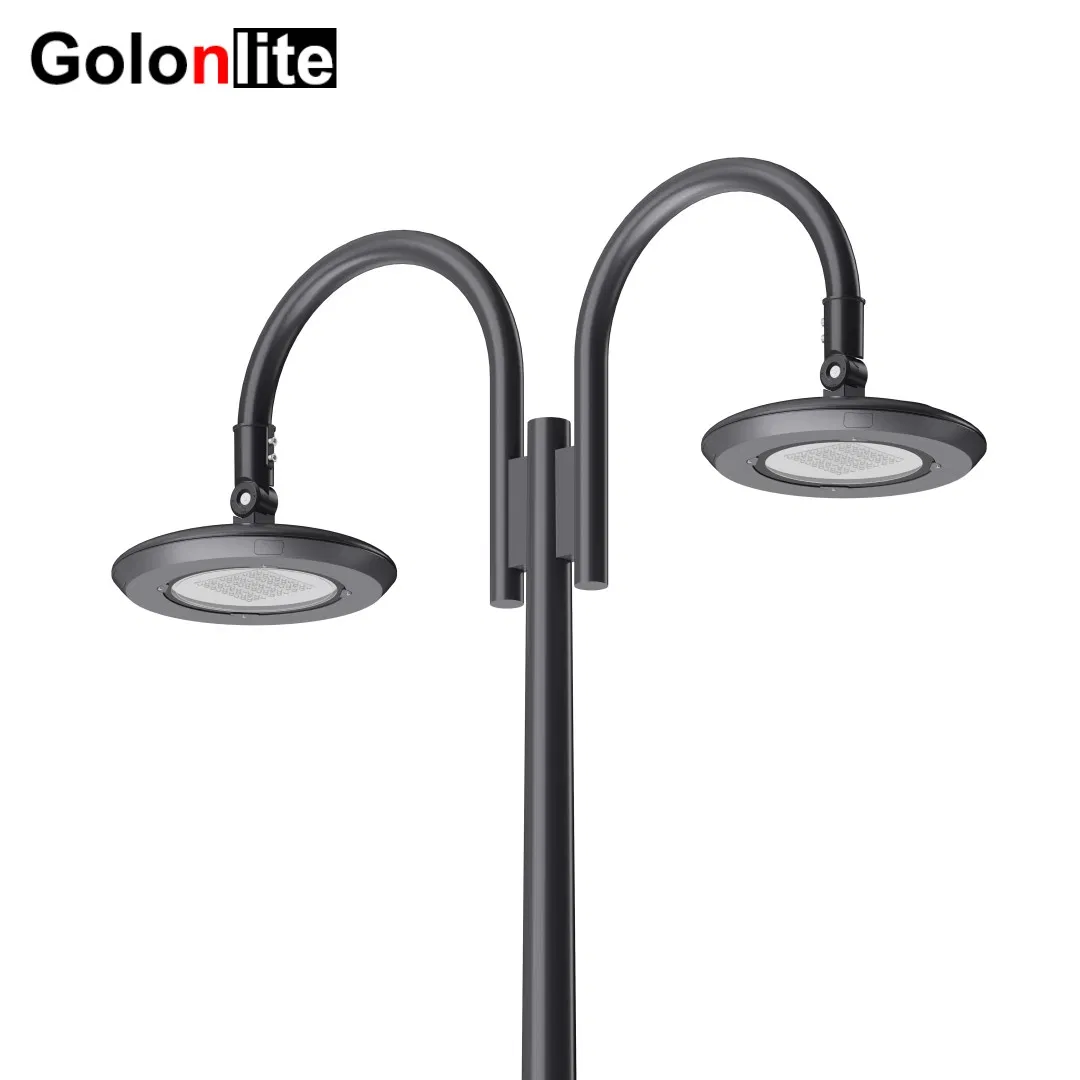

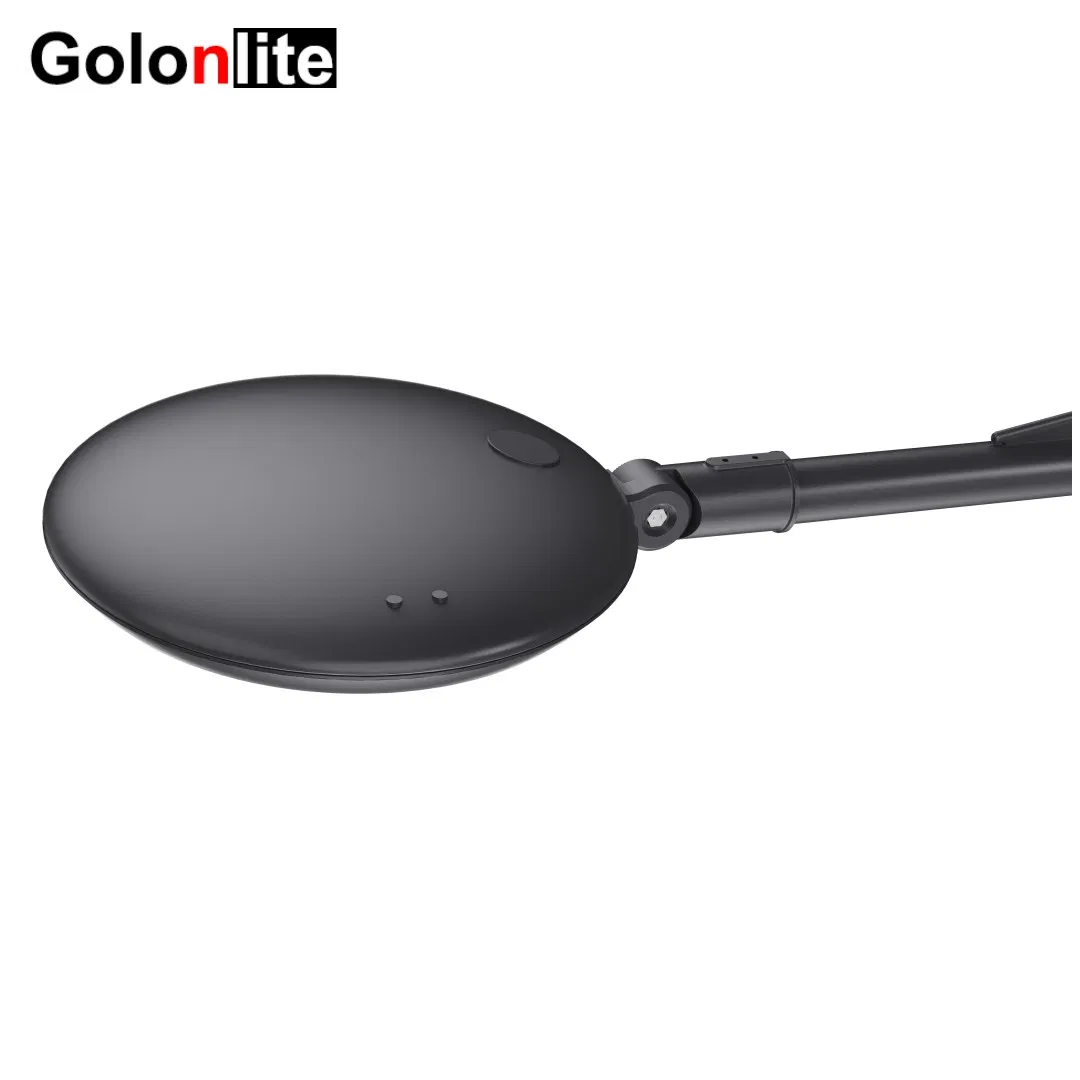

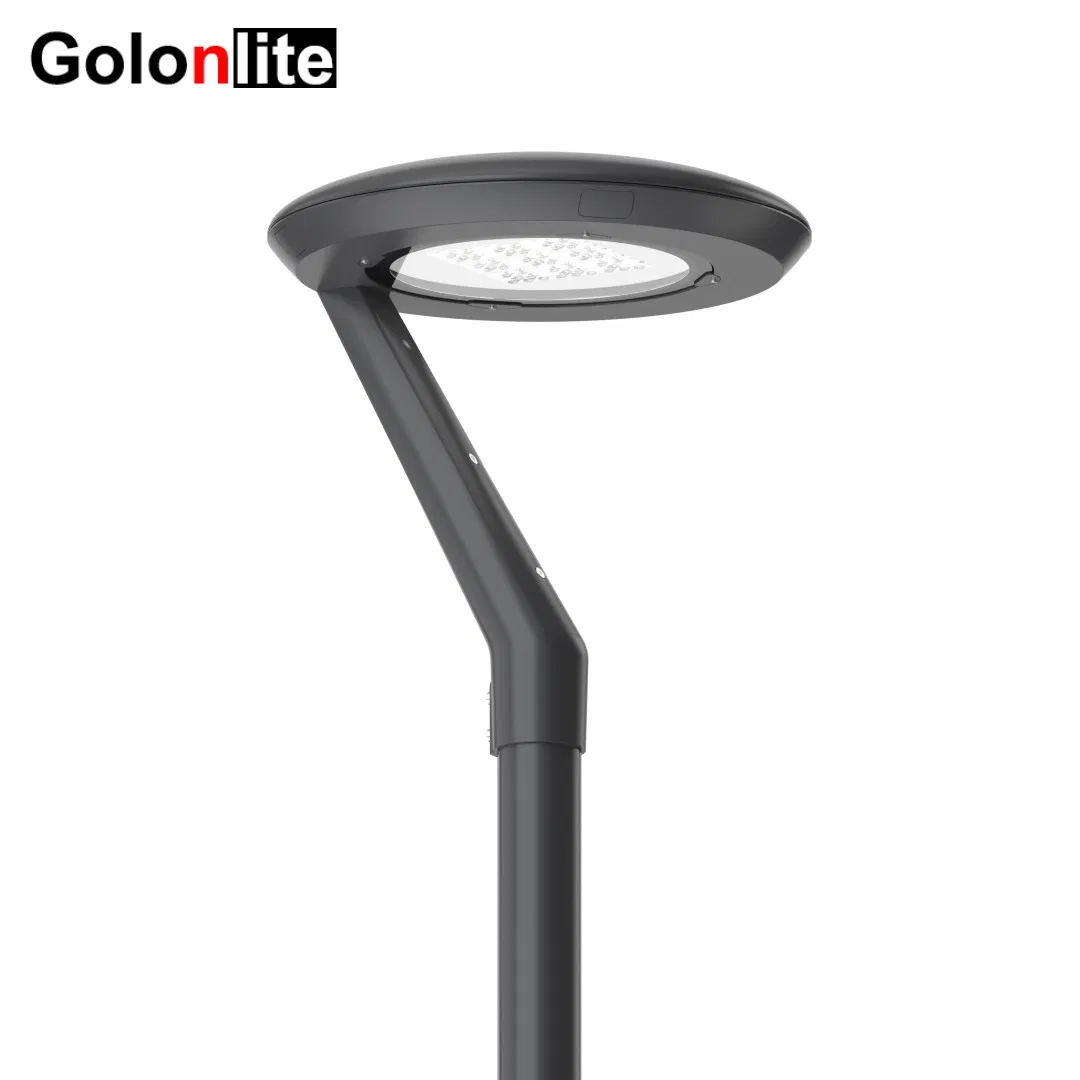

30W -120W Tool free opening outdoor LED post top lighting fixture
| Luminous Efficiency |
150Lm/W - 180Lm/W |
| CCT (K) |
1700K / 2200K / 3000K / 4000K / 5000K / 5700K / 6500K |
| Smart Control |
3/5/7 pins NEMA base / Photocell sensor / LoRaWan / Zigbee |
| Lifespan |
> 50,000 Hours |
| Surge Protection |
SPD 6KV / 10KV / 20KV |
Core Features:
- Die casting aluminum housing + Optical PC lens
- Tool-free opening for easy maintenance
- Super bright: High lumen efficiency up to 170Lm/W
- Multiple beam angles: T2M/T3M/T4M/P50
- Professional Dialux lighting simulation available
- Wide application: Urban roads, parking lots, parks, and gardens

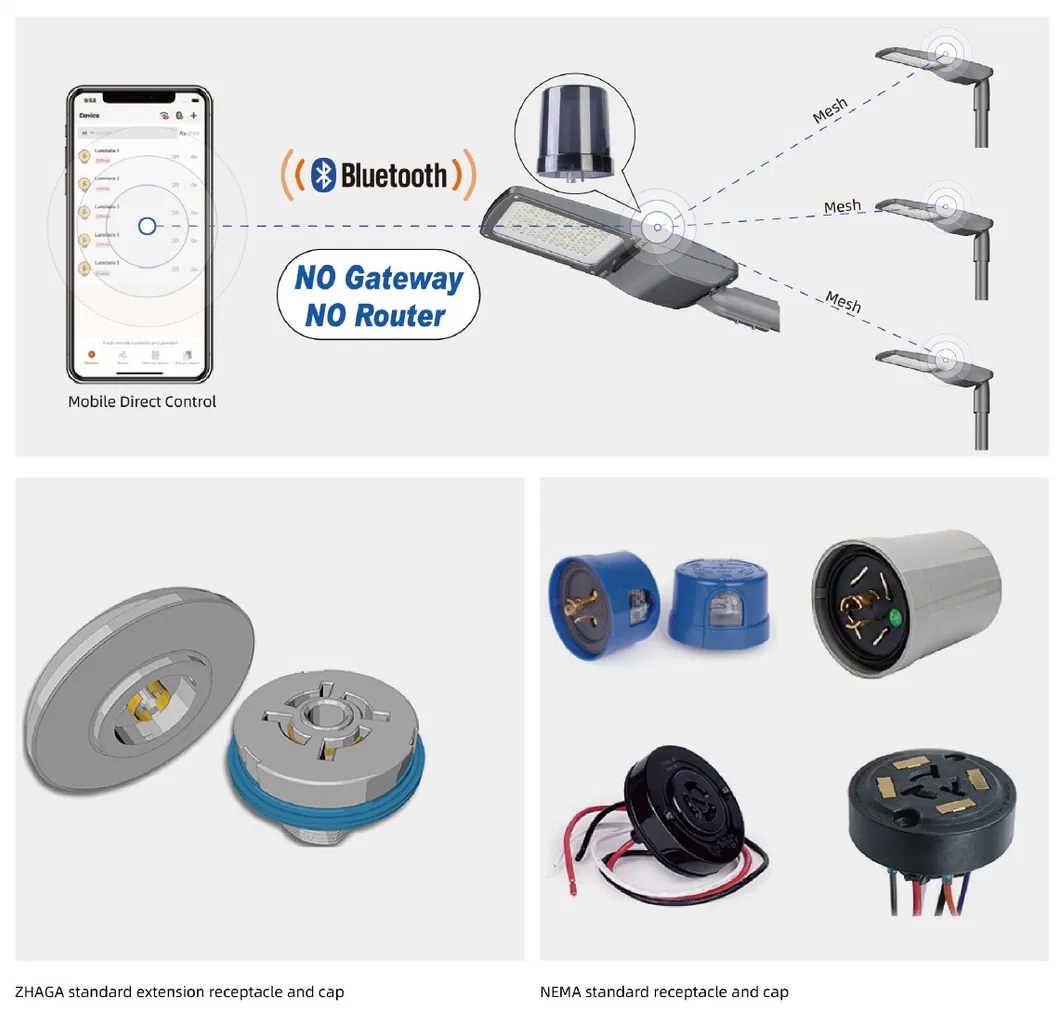

Smart Control & System Capabilities
LoRaWAN / Zigbee NEMA Smart Control System:
- Remote switch on/off and dimming
- Real-time power consumption and electricity reports
- Fault alarm and interval status monitoring
- Group controlling and power rate settings

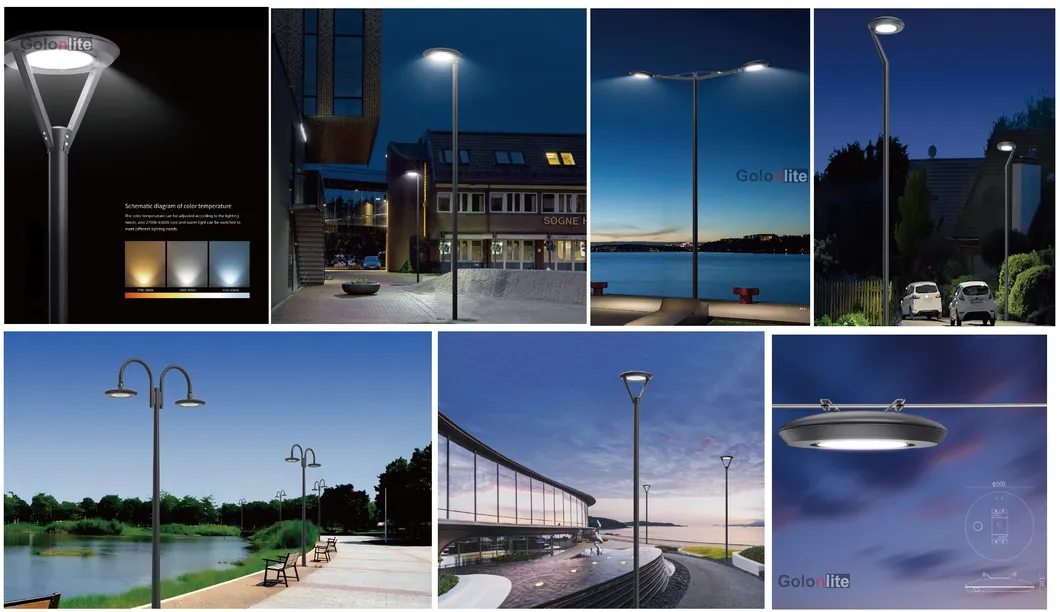

Applications

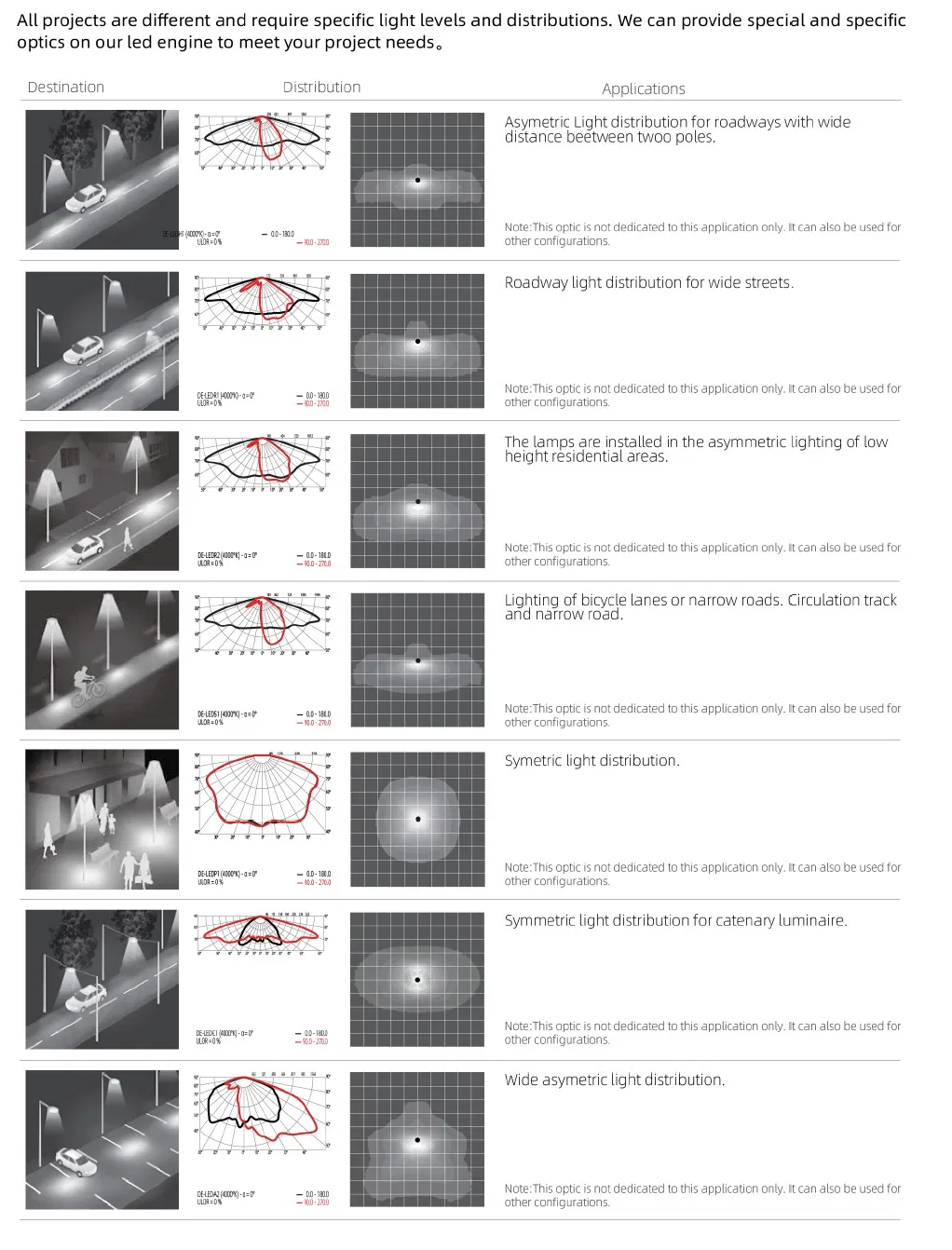

Photometric & Beam Angles
FAQ
Q1: What is the typical lifespan of these LED post top lights?
A: The fixtures are designed for a lifespan exceeding 50,000 hours, supported by high-quality drivers like Meanwell or Inventronics.
Q2: Can I get a lighting simulation before purchasing?
A: Yes, we provide free Dialux lighting simulation and specialized IES files to help you design the perfect lighting solution.
Q3: Are these lights suitable for coastal areas?
A: With an IP66 waterproof rating and high-quality die-casting aluminum housing, these lights are built to withstand harsh outdoor environments.
Q4: What smart control options are available?
A: We offer 3/5/7 pin NEMA bases compatible with Photocell sensors, Zigbee, and LoRaWAN systems for intelligent management.
Q5: What is the standard warranty period?
A: We offer a 5 to 7-year warranty depending on the specific configuration and client requirements.
Q6: How easy is the installation process?
A: These fixtures feature a tool-free opening design and are compatible with standard 60mm diameter poles, making installation and maintenance fast and simple.
