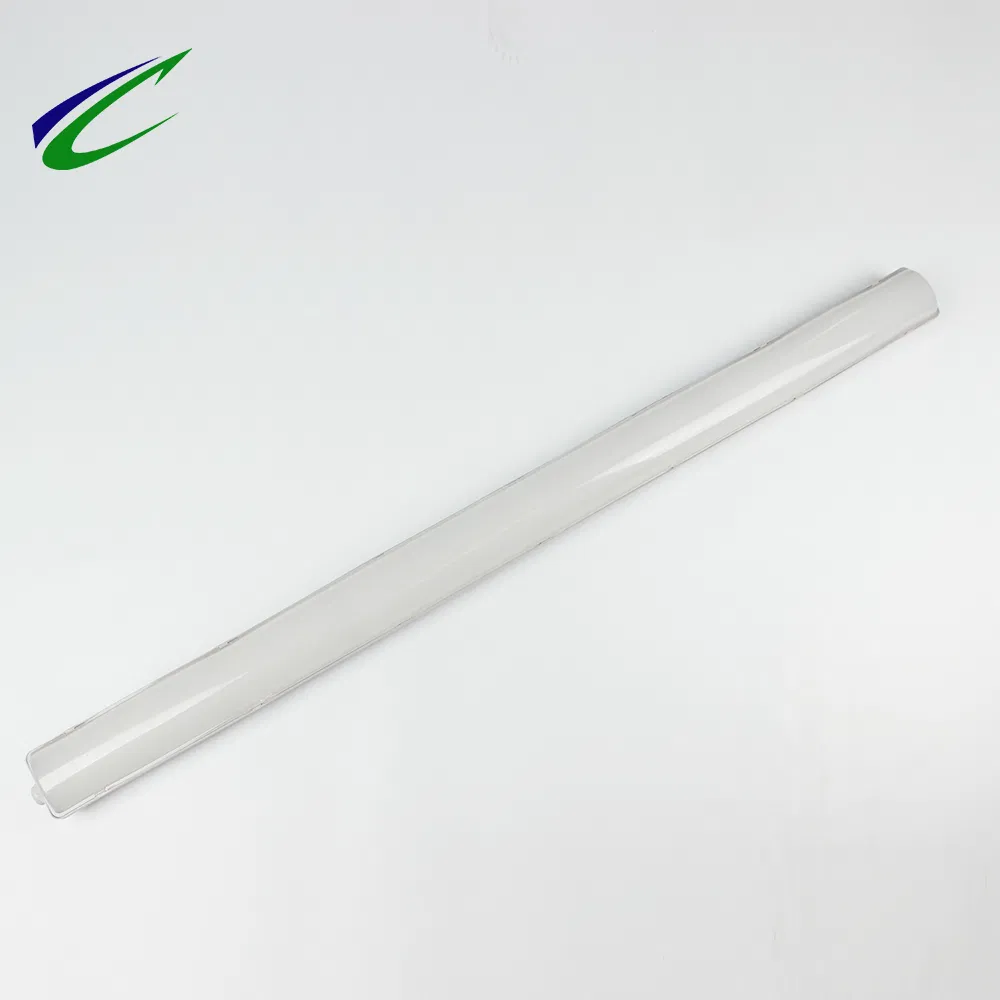

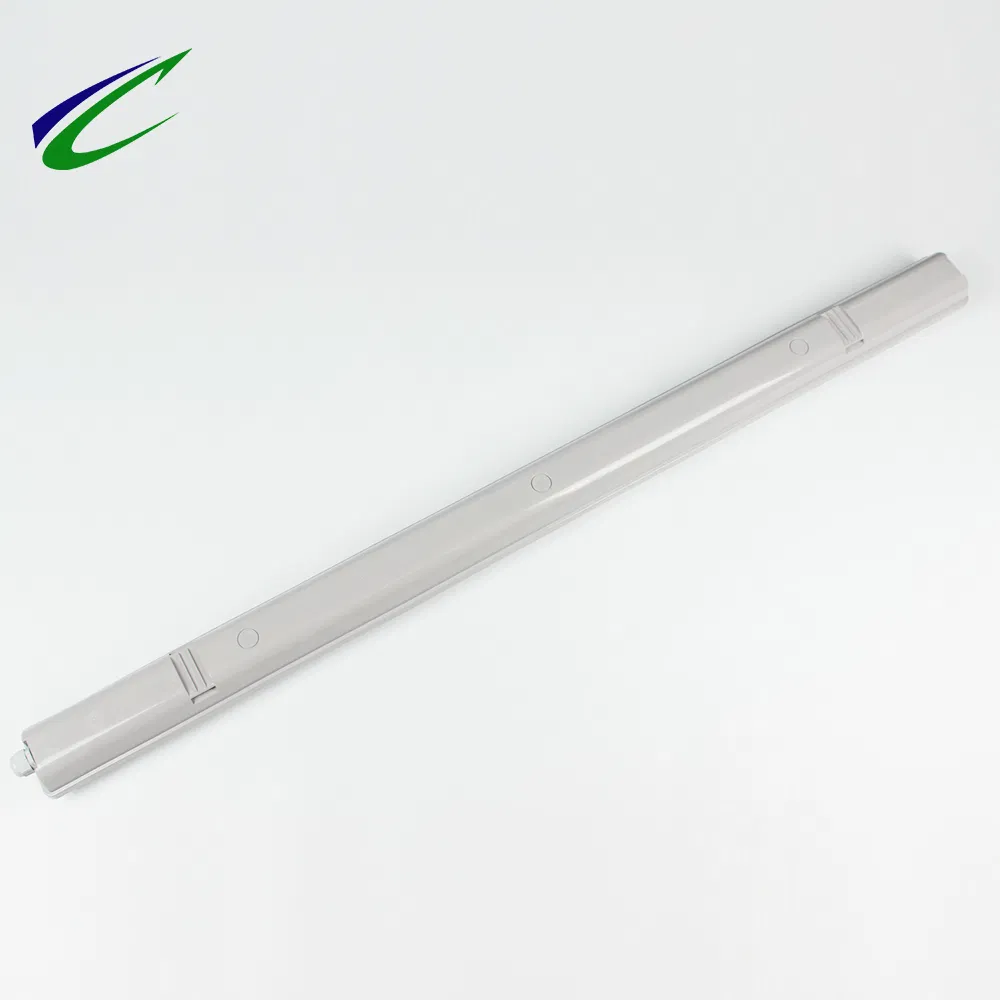

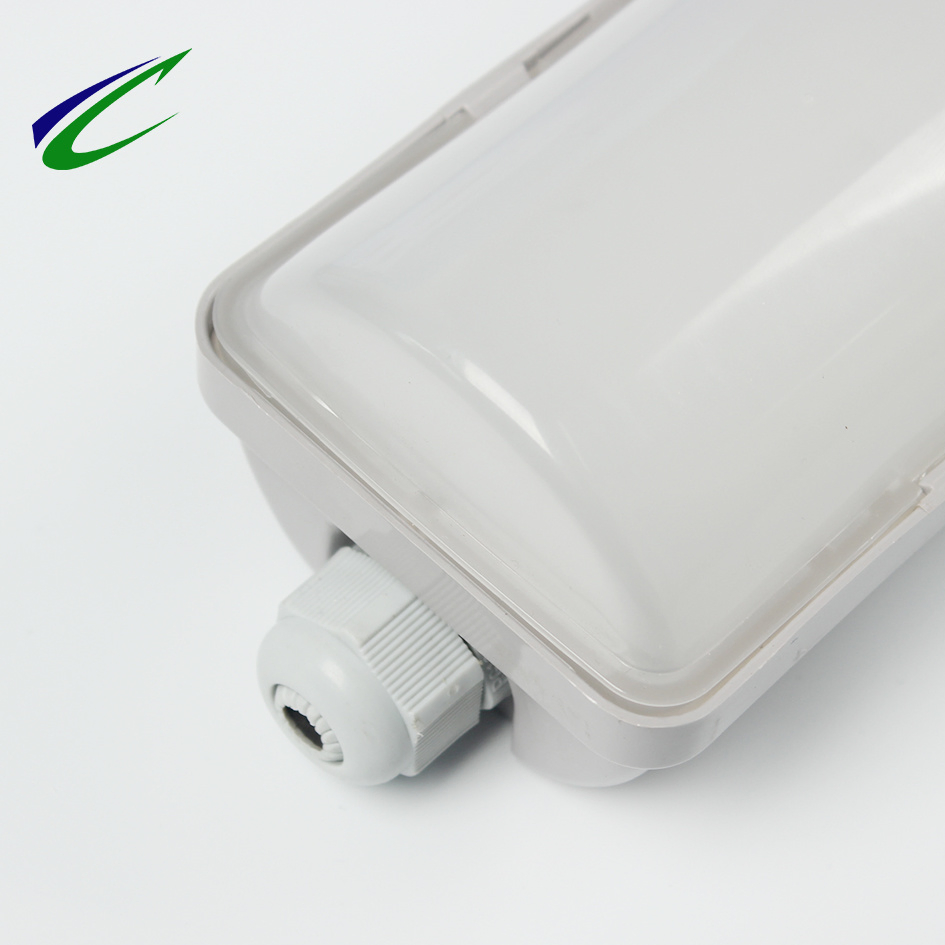

IP65 LED Tri Proof Outdoor Lighting Fixtures

i

Basic Specifications

Model NO.

DY-LED3218P/G

Feature

Anti-corrosion, Dust-Proof, Waterproof

Material

PC (Plastic)

Power

36W

CCT

2700-6500K

PF / CRI

0.9 / Ra>80

Dimensions

114*7.5*6.6cm

HS Code

9405409000

★

Key Features

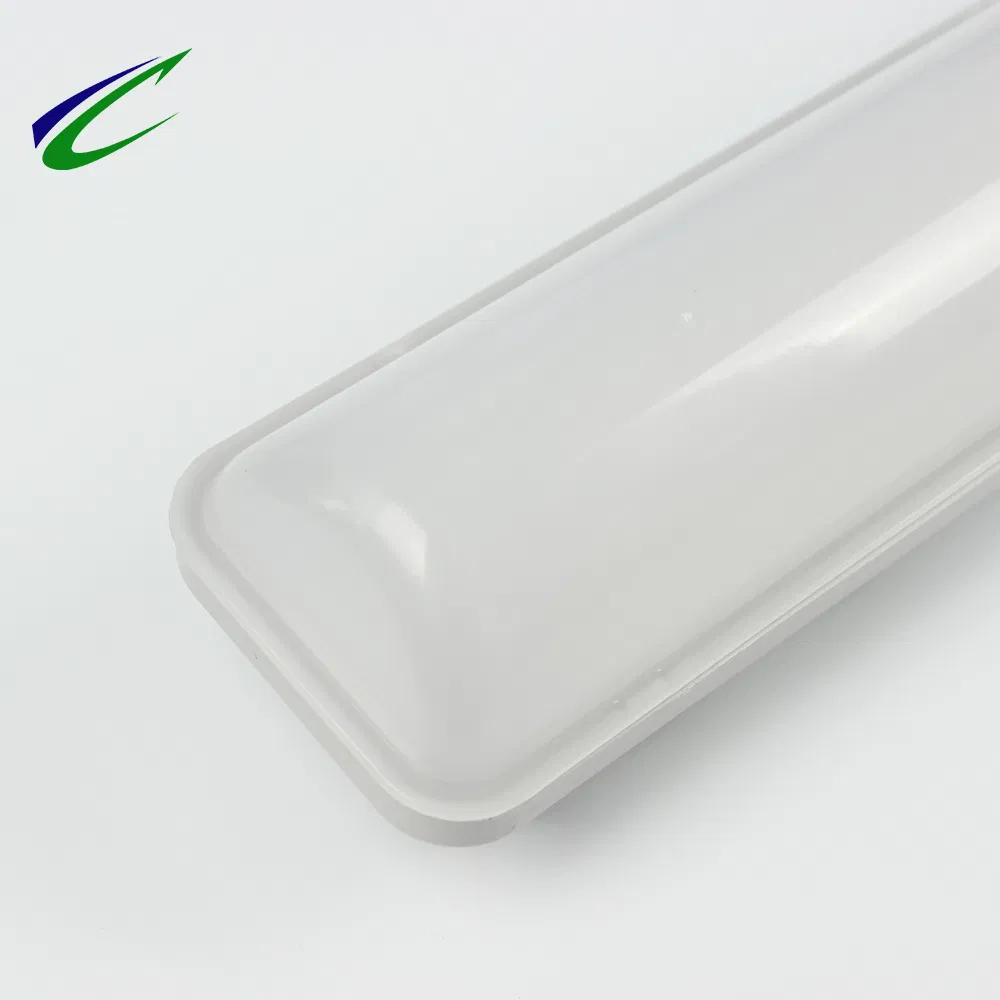

Injection PC housing and cover providing IP65 protection and IK08 impact rating.
Clip-free design for streamlined looks and easier installation.
Integrated 6063 aluminium reflector for superior heat dissipation.
Energy-efficient LED solution reduces long-term maintenance costs.

L

Applications

Ideal for Car parks, Industrial areas, Offices, Corridors, Supermarkets, Bakeries, and Storage facilities.

T

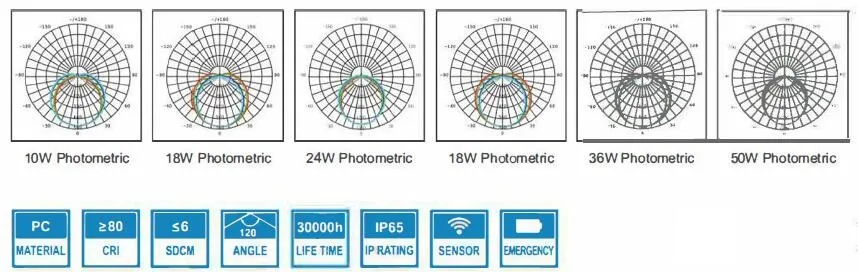

Technical Parameters

Model	Power	Lumen	L(mm)	W(mm)	H(mm)
DY-LED3109P/G	10W	900lm	580	60	66
DY-LED3209P/G	18W	1620lm	580	75	66
DY-LED3118P/G	18W	1620lm	1140	60	66
DY-LED3218P/G	36W	3240lm	1140	75	66
DY-LED3125P/G	24W	2160lm	1480	60	66
DY-LED3225P/G	50W	4500lm	1480	75	66

P

Packaging & Delivery

Package Size

130.00cm * 10.00cm * 5.00cm

Gross Weight

2.000kg

?

Frequently Asked Questions

Q1: What does "Tri-Proof" mean for this LED light? A: It refers to the fixture being waterproof, dust-proof, and anti-corrosion, specifically rated at IP65 for outdoor and industrial environments.

Q2: What is the impact resistance rating? A: These fixtures have an IK08 impact rating, thanks to the high-quality injection-molded PC housing.

Q3: How is the heat dissipation handled? A: The light features an internal 6063 aluminium reflector which effectively manages heat to ensure long LED life.

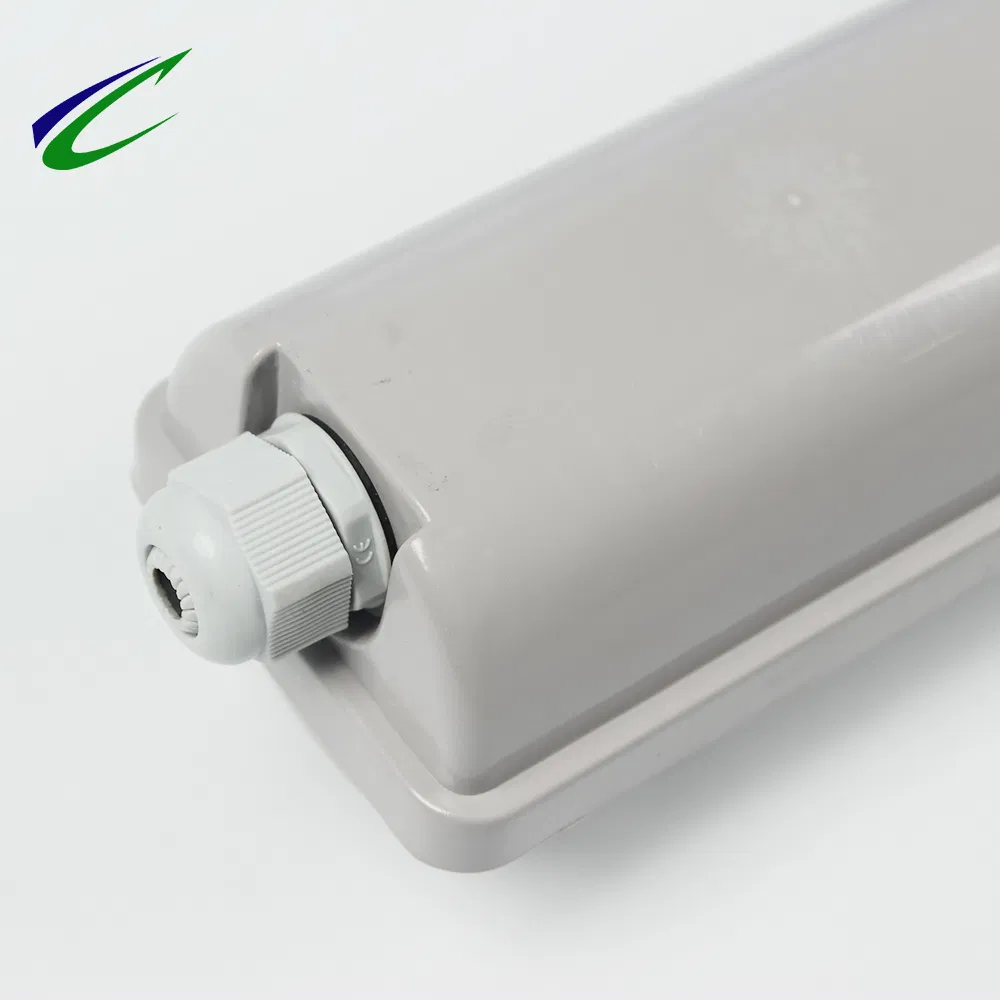

Q4: Is the installation complicated? A: No, the design includes no closing clips for easier handling, and it features convenient back-side wire connections.

Q5: What color temperatures are available? A: We offer a wide range from 2700K (Warm White) to 6500K (Cool White) to suit different application needs.

Q6: What is the minimum order quantity (MOQ)? A: The standard MOQ for this product is 500 pieces per order.
