📊 Basic Information
Base Type
Suspended / Surface Mounted
Shell Color
Black / White / Silver
💡 Product Description

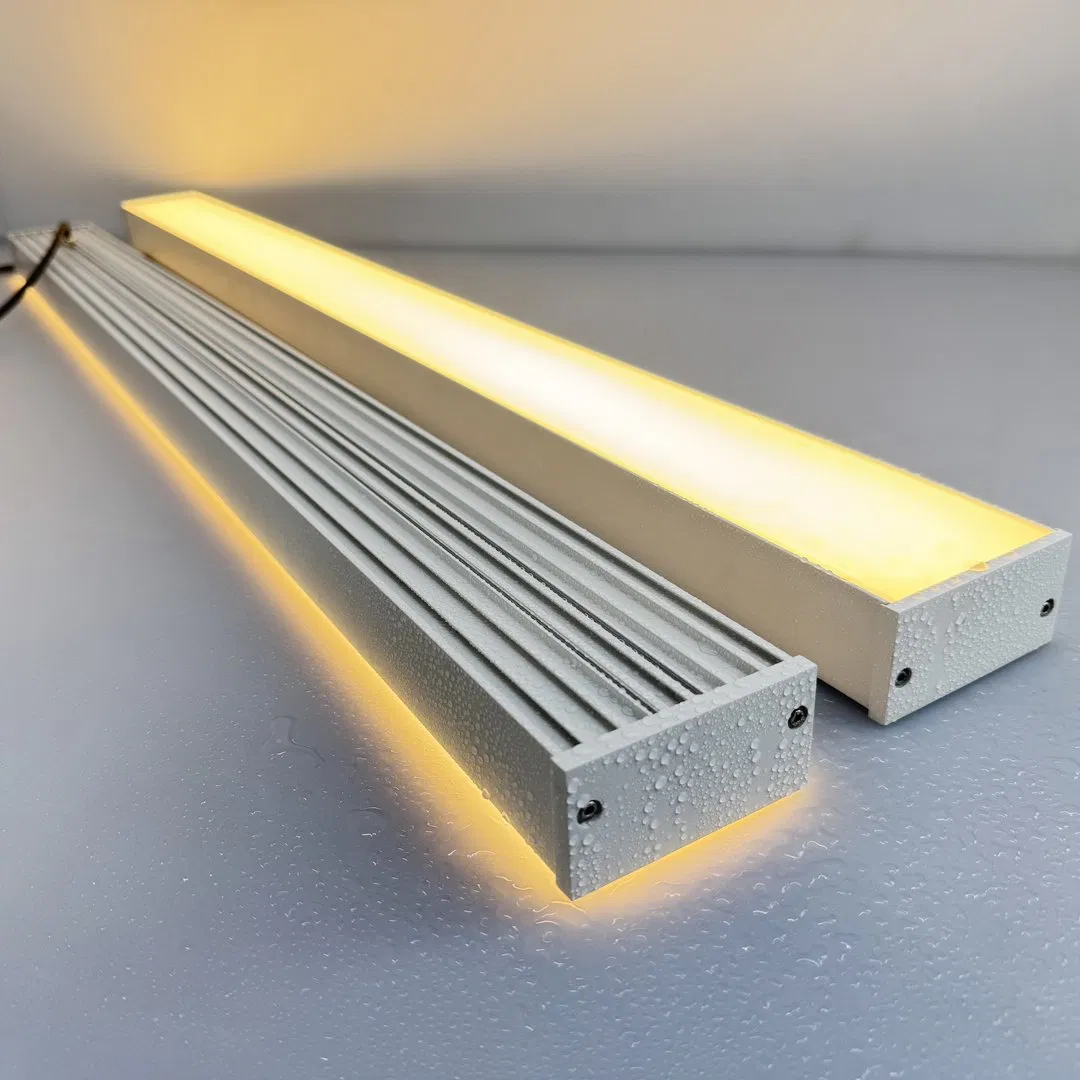

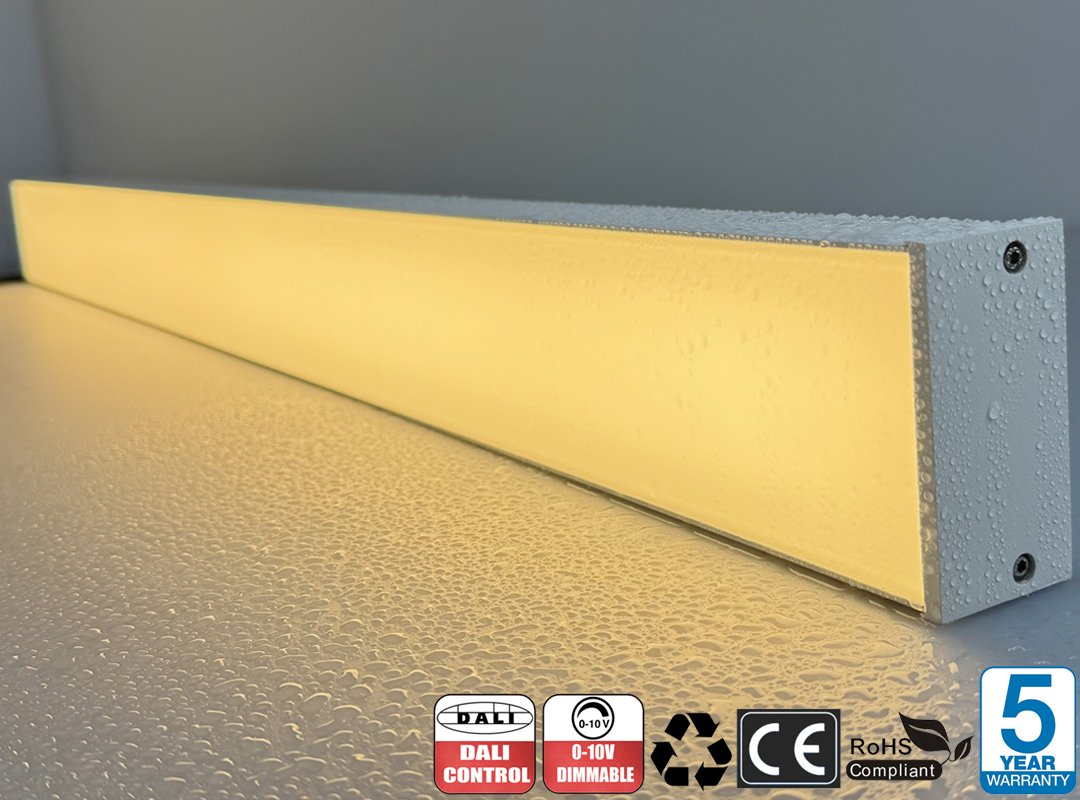

IP65 W80xH40mm Waterproof Profile LED Linear Light
| Model No. |
Watt |
Lumens |
Size (mm) |
Input Voltage |
CCT |
| EN-X8040FS-20 | 20W | 2000Lm | L600*W80*H40 | AC100-277V | 3000K-6000K |
| EN-X8040FS-40 | 40W | 4000Lm | L1200*W80*H40 | AC100-277V | 3000K-6000K |
| EN-X8040FS-50 | 50W | 5000Lm | L1500*W80*H40 | AC100-277V | 3000K-6000K |
| EN-X8040FS-60 | 60W | 6000Lm | L1800*W80*H40 | AC100-277V | 3000K-6000K |
| EN-X8040FS-80 | 80W | 8000Lm | L2400*W80*H40 | AC100-277V | 3000K-6000K |

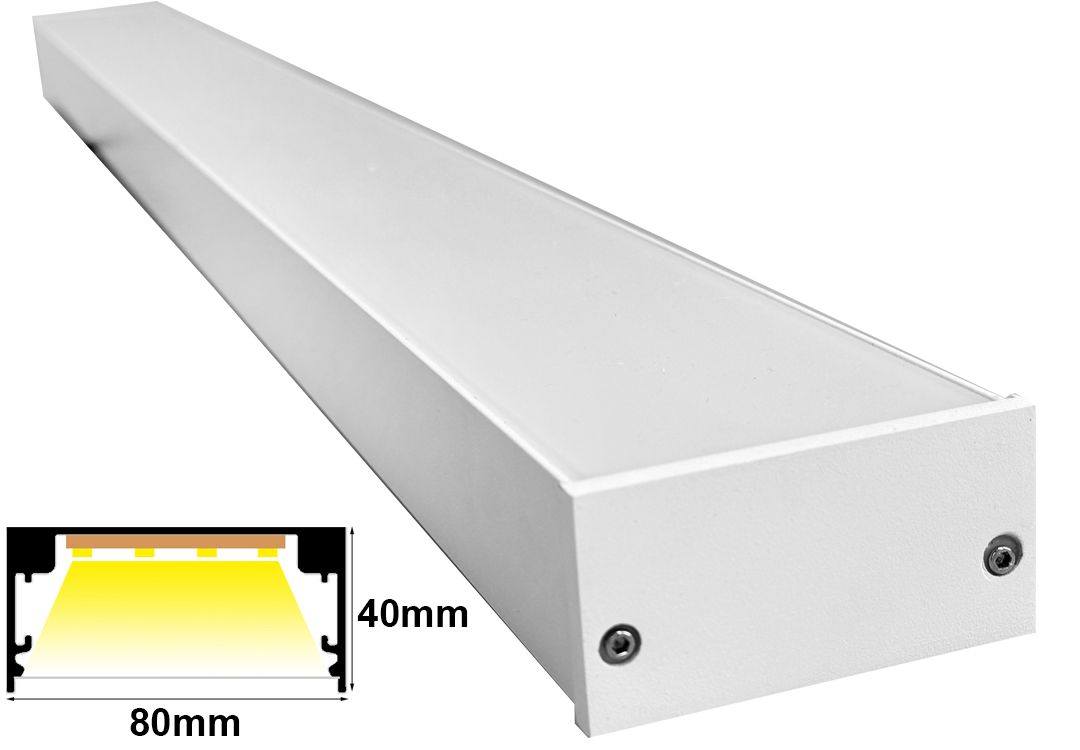

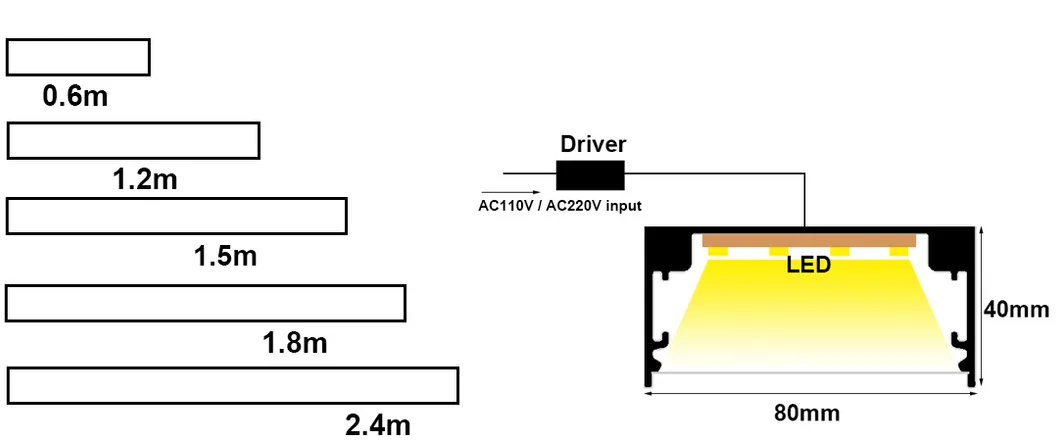

📏 Product Size & Options

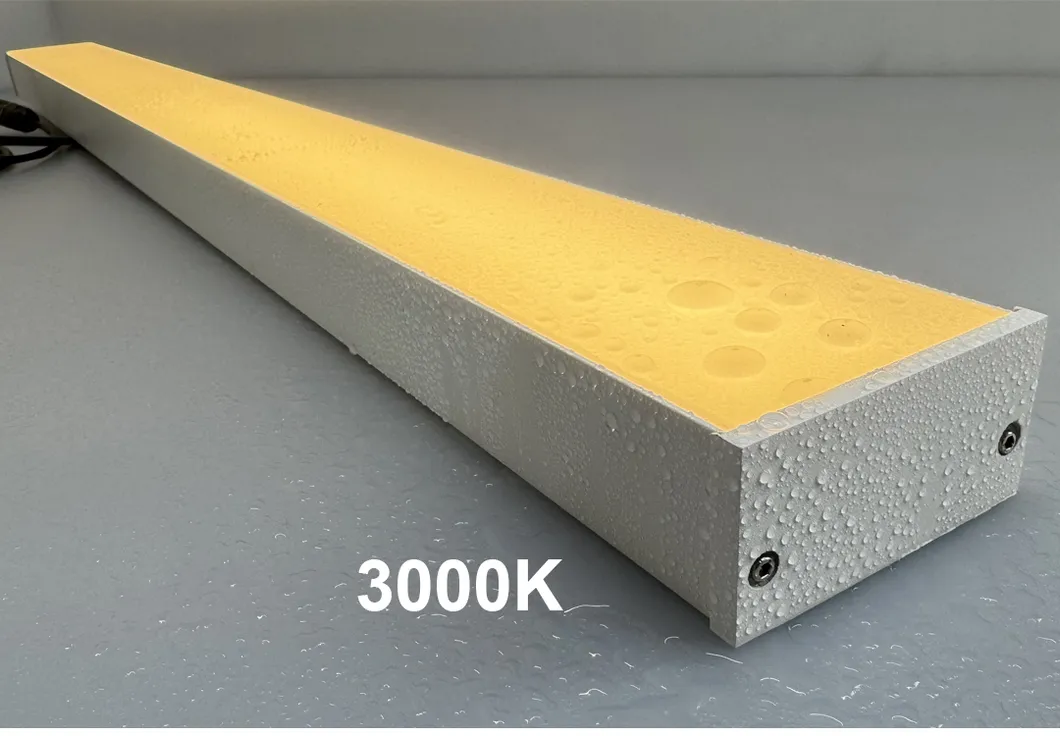

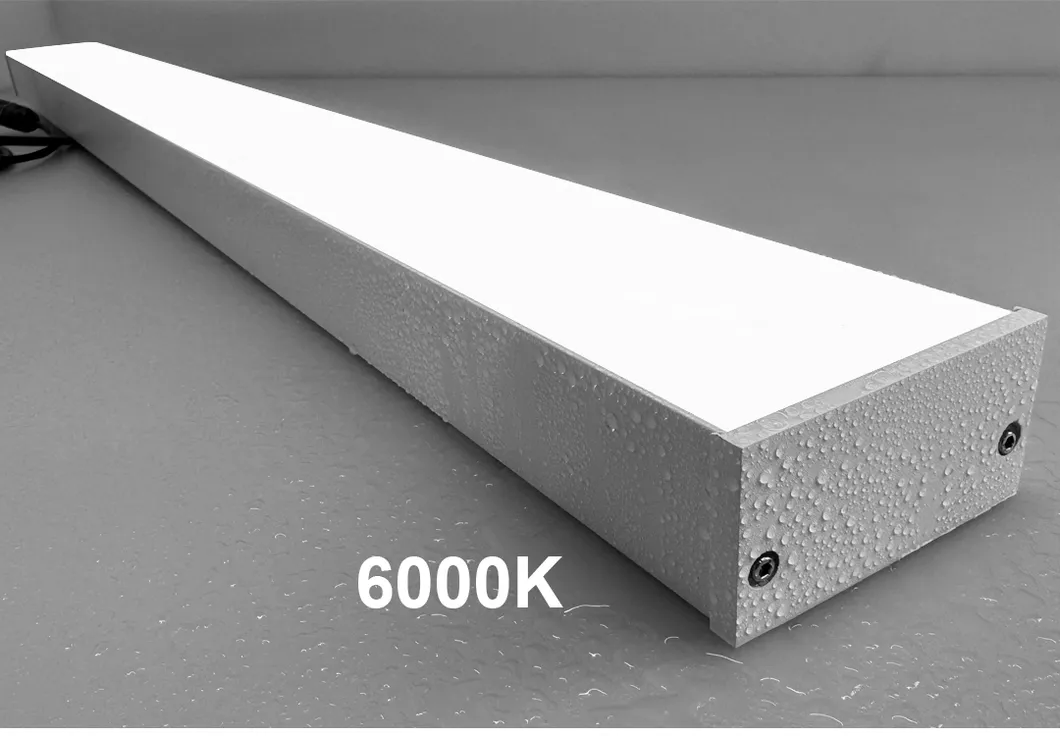

🎨 Emitting Color Options

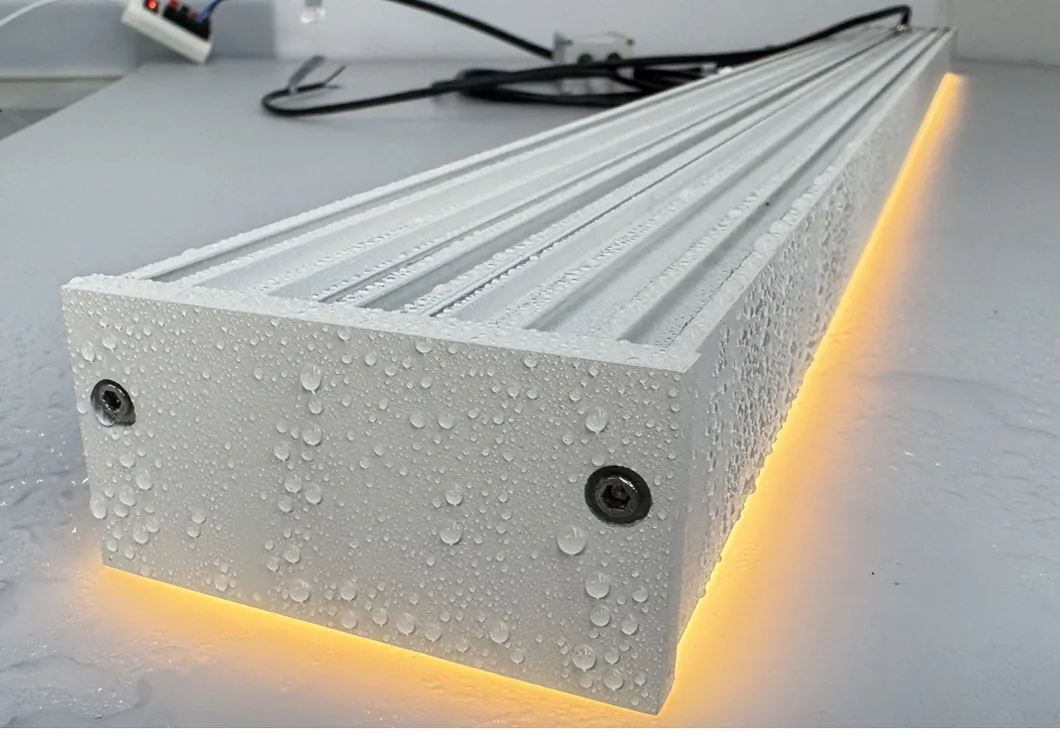

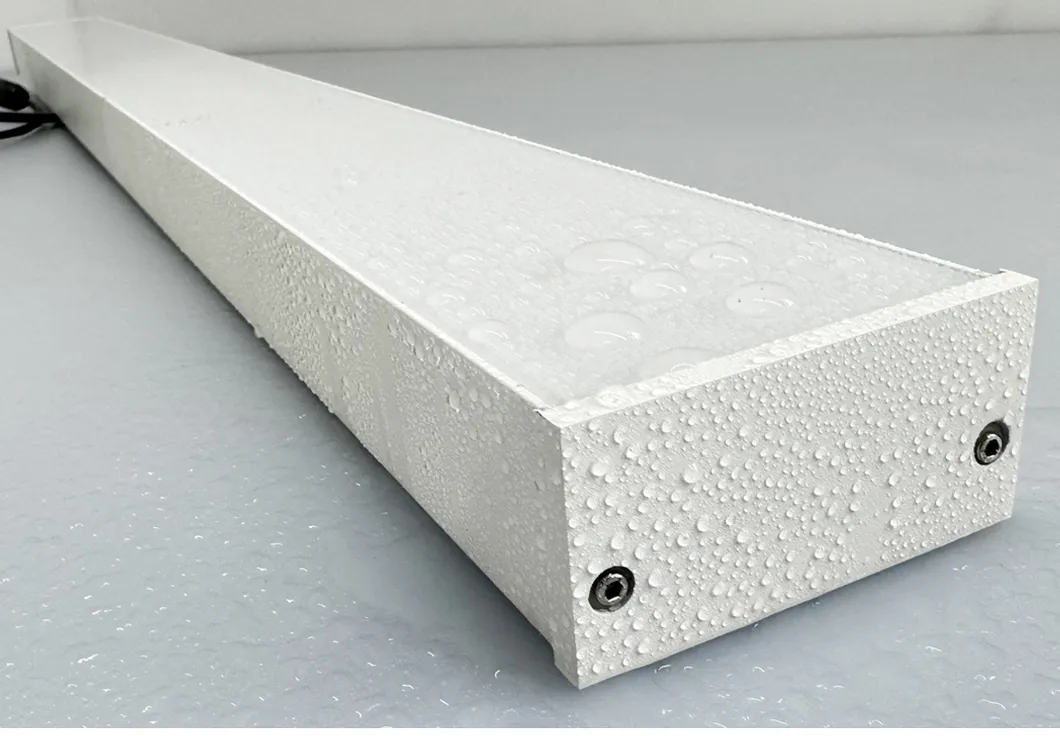

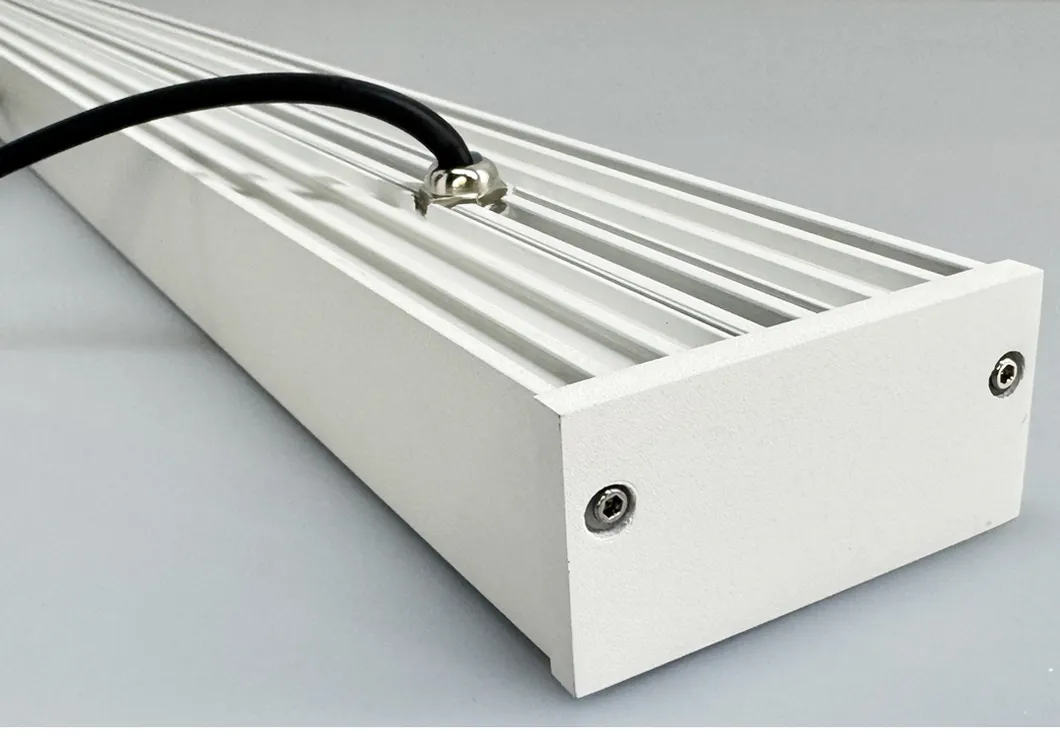

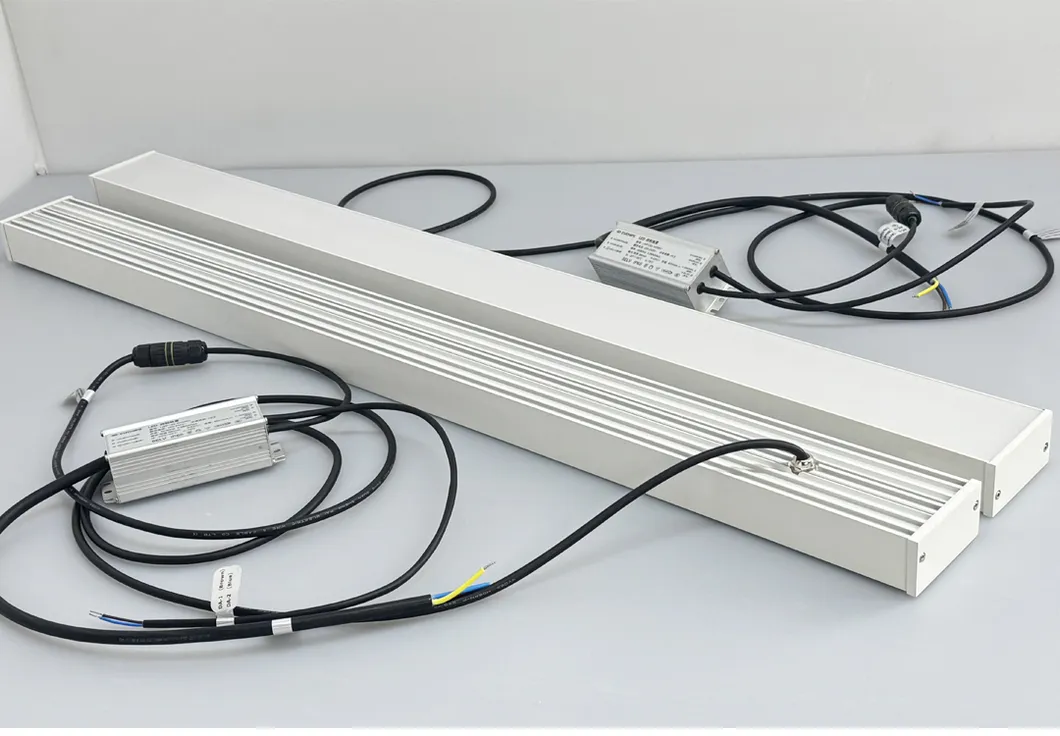

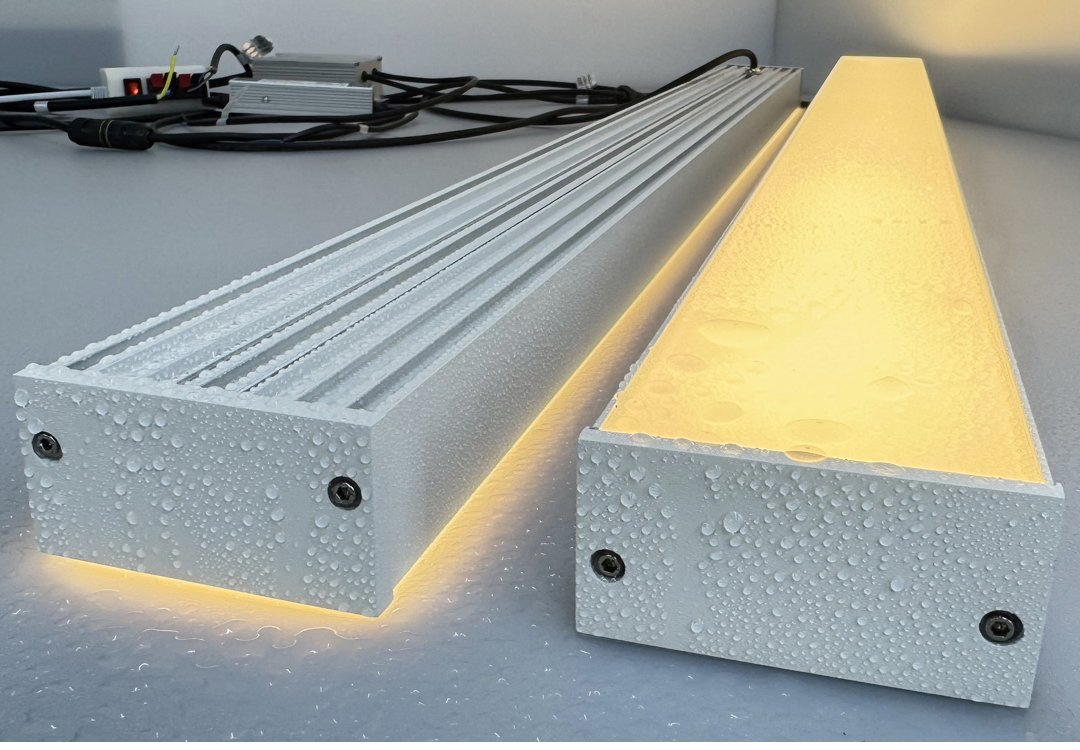

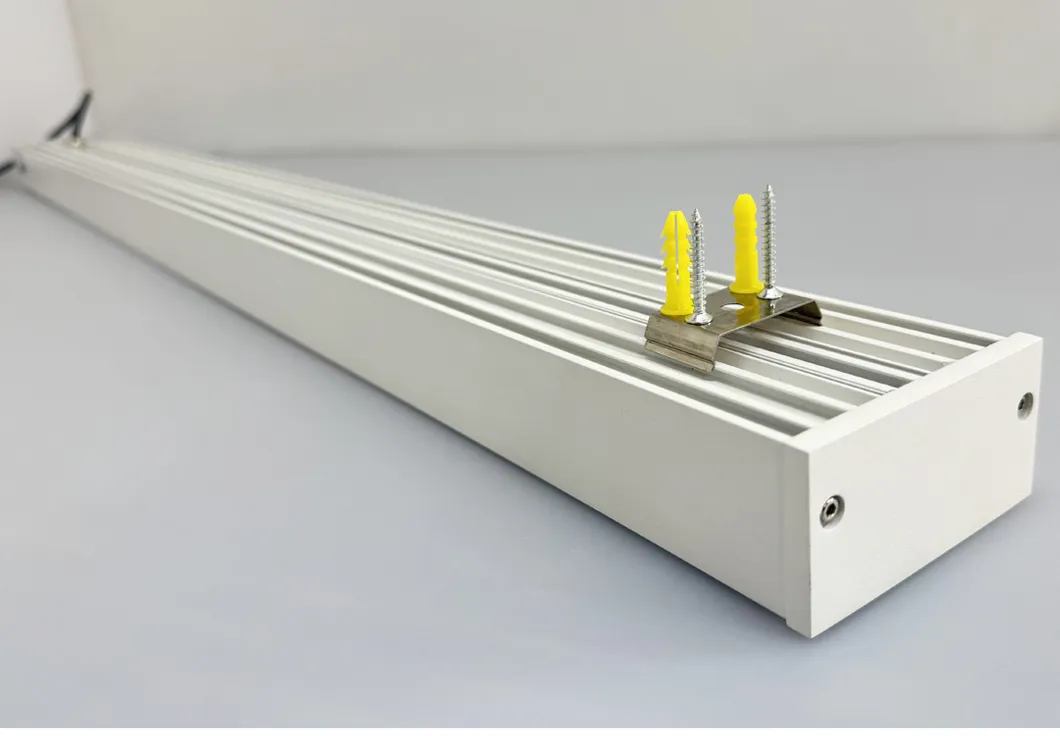

🖼️ Product Display

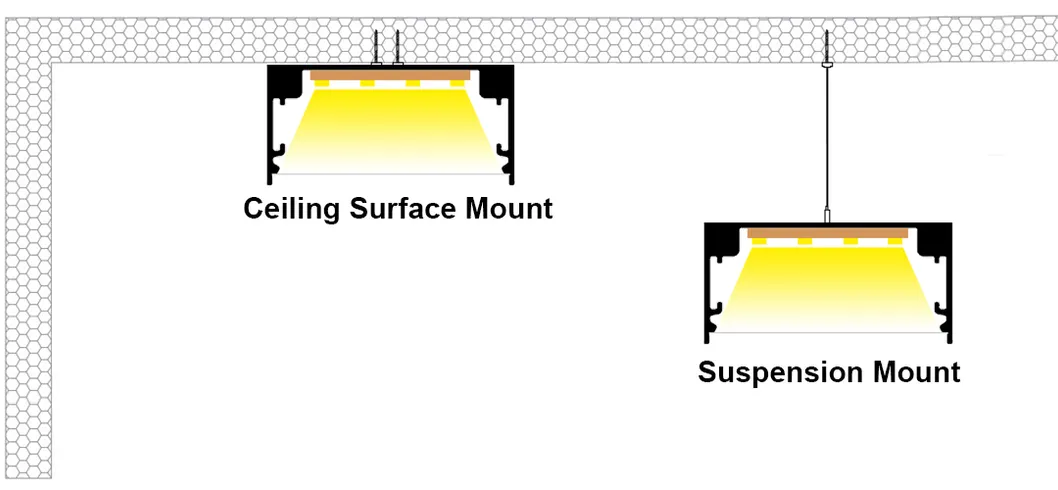

🛠️ Installation & Control
- ON/OFF Standard Control
- 0-10V Dimming System
- Triac Dimming Support
- DALI Certification Dimming
🌟 Main Features
- Extruded aluminium profile with Die-cast end caps
- Clip-in PMMA diffuser for smooth light distribution
- High lumens LED board (110 Lm/W)
- Built-in professional LED driver
- Wide-beam light distribution (120 Degree)
- Multiple length options: 600mm to 2400mm

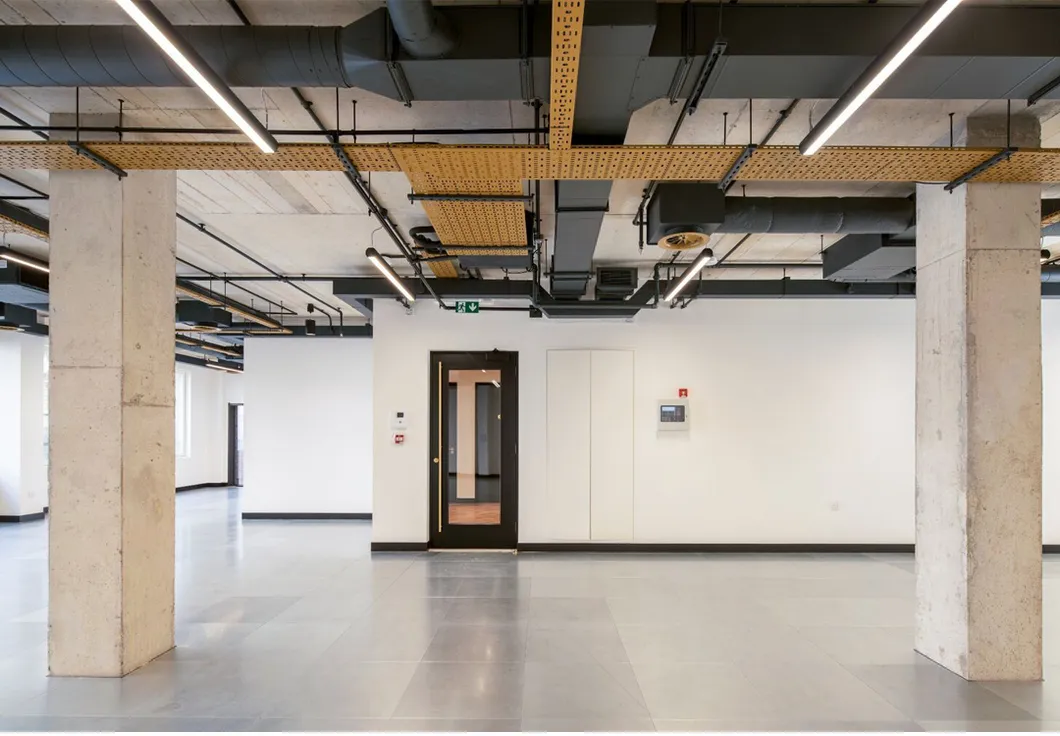

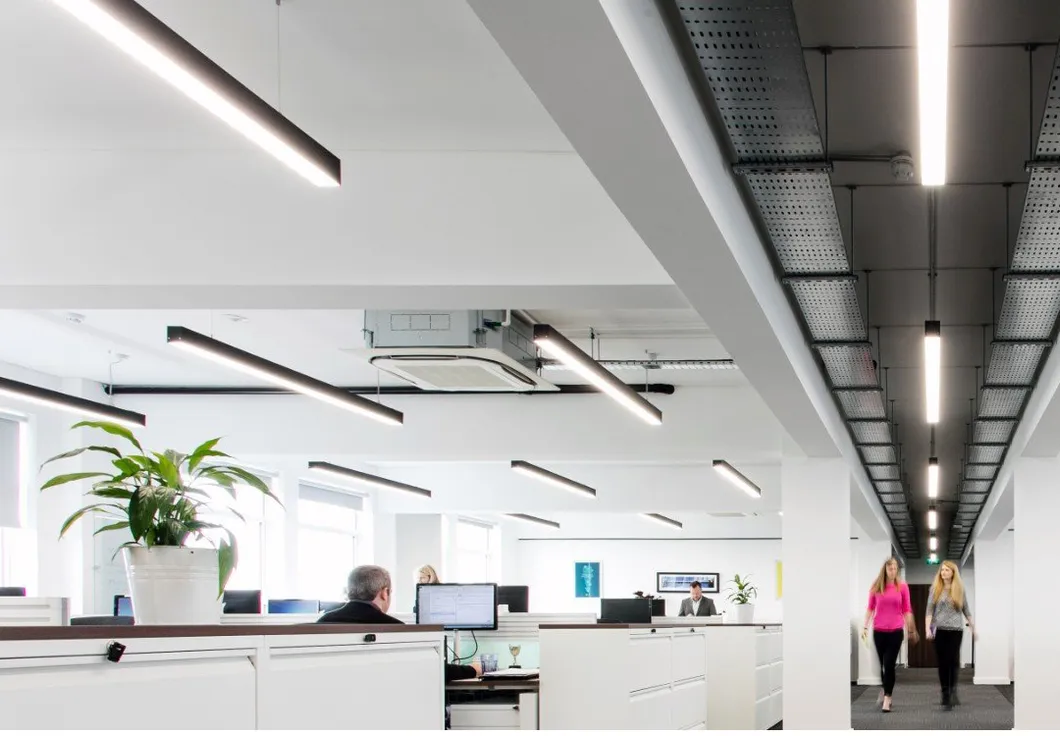

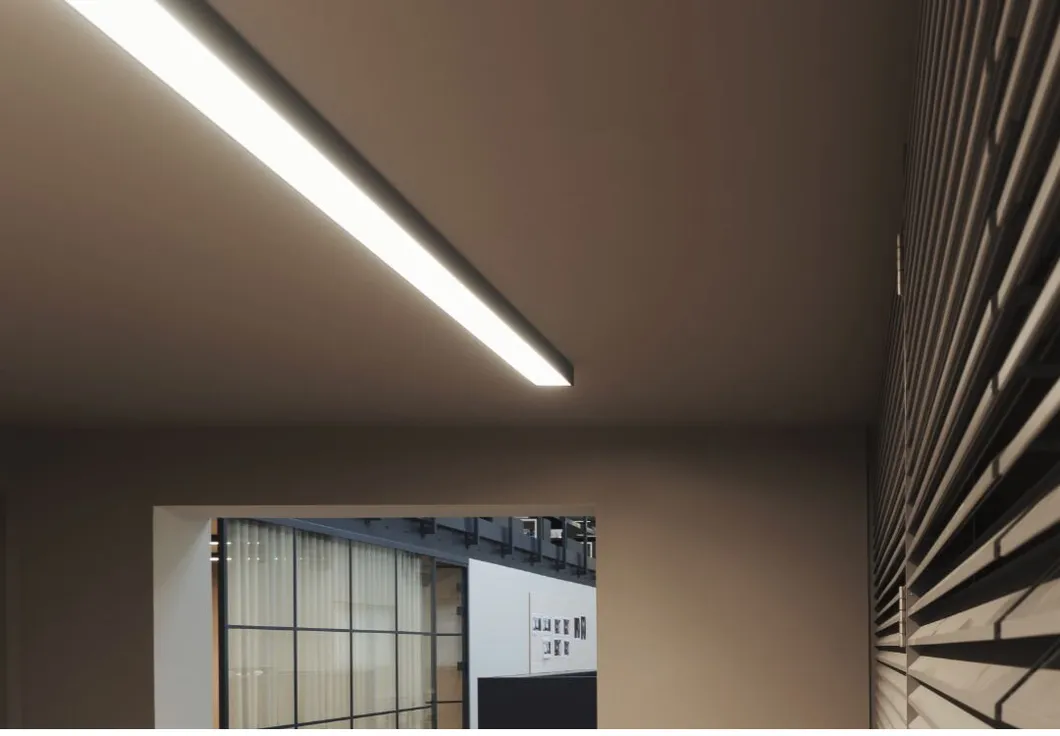

🏠 Applications
Suitable for both indoor and outdoor use. Perfect for Warehouse, workshop, farm, courtyard, corridor, swimming pool.
❓ Frequently Asked Questions
Can I have a sample order for this LED linear light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the leading time for production?
Samples need 3-5 days, while mass production typically requires 1-2 weeks depending on order quantity.
Is there a minimum order quantity (MOQ)?
We offer a low MOQ; even 1pc for sample checking is available.
What dimming options are available?
We provide multiple functional options including Non-dimming, 0-10V, Triac, and DALI dimming to suit your control system.
What is the warranty period for these lights?
We offer a 5-year warranty for these premium waterproof linear lights.
How do you handle product quality and faults?
Our products are produced under a strict quality control system with a defective rate of less than 0.2%. During the guarantee period, we provide replacements or repairs for any defective units.
