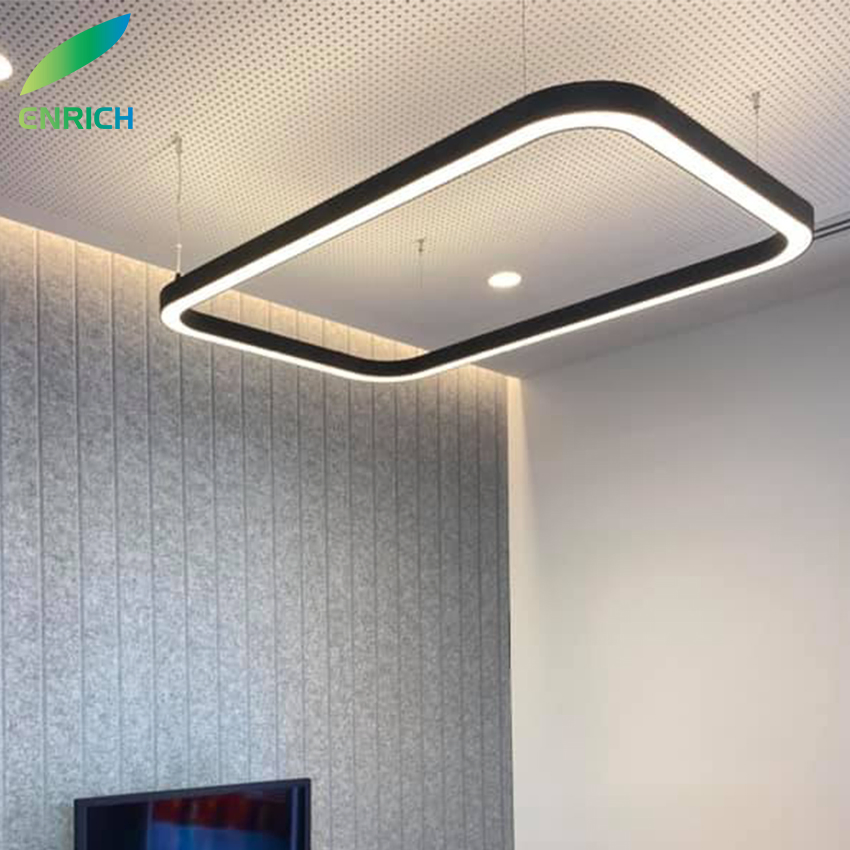

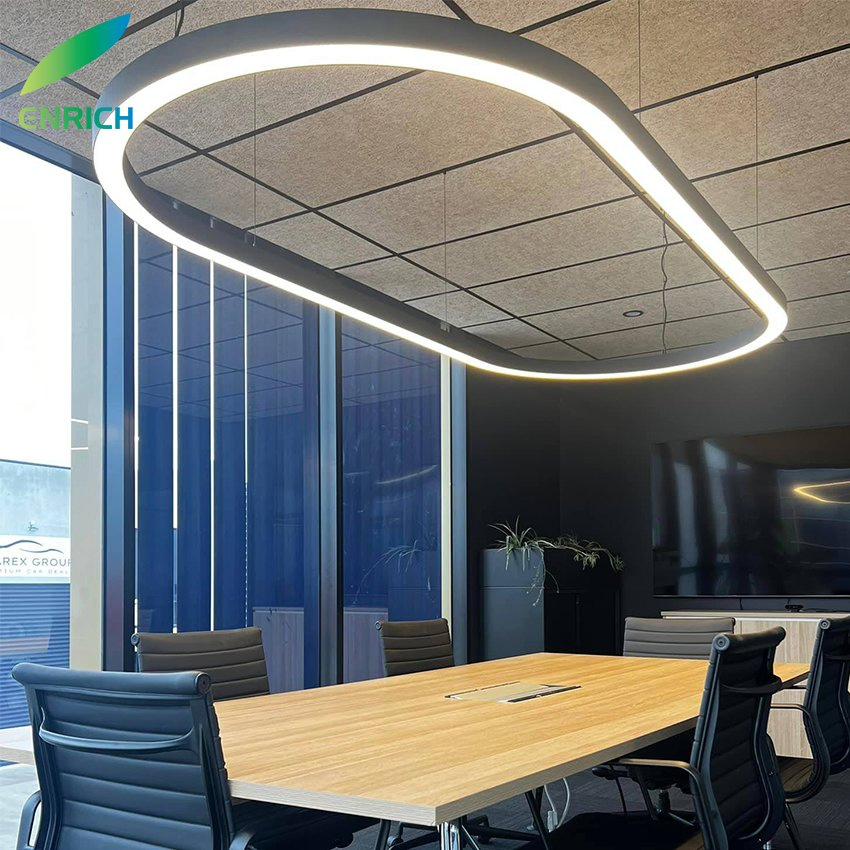

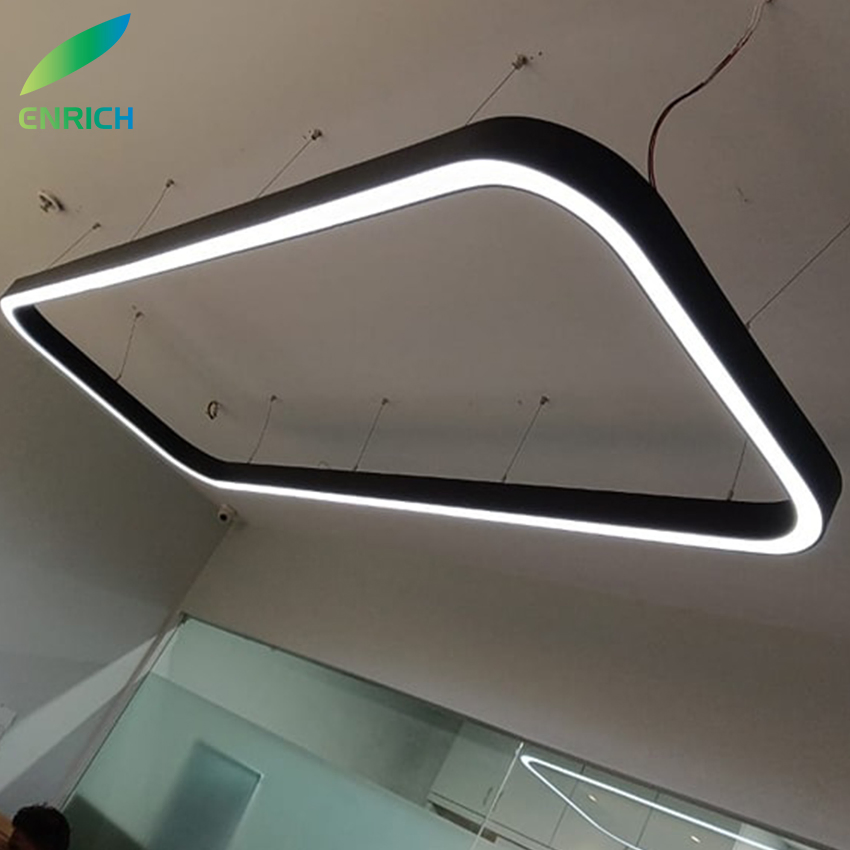

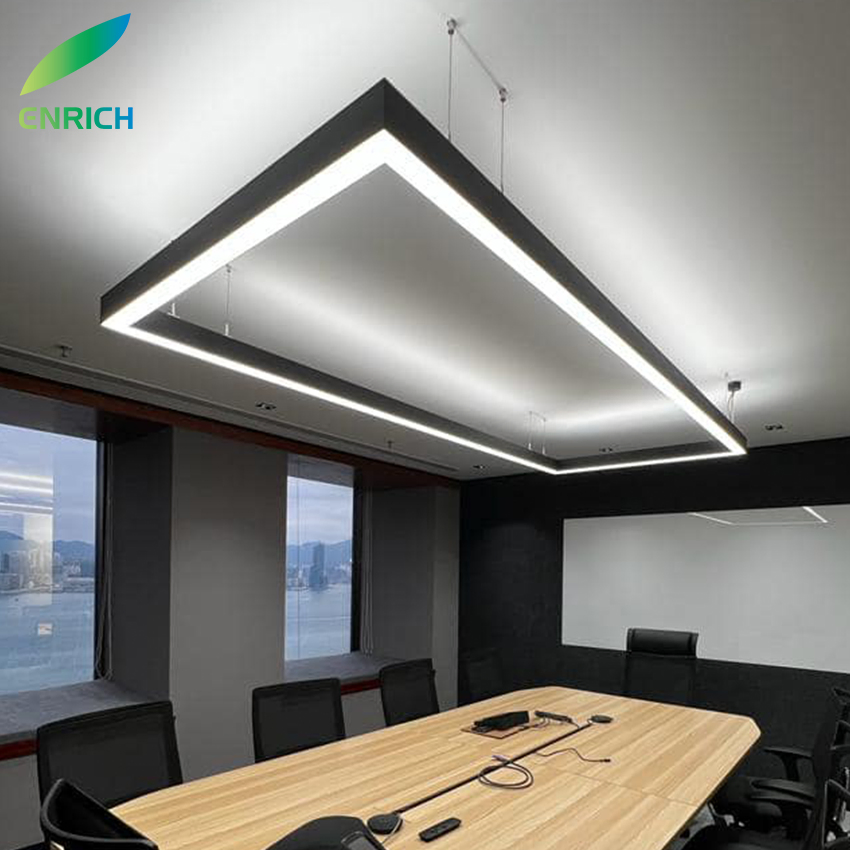

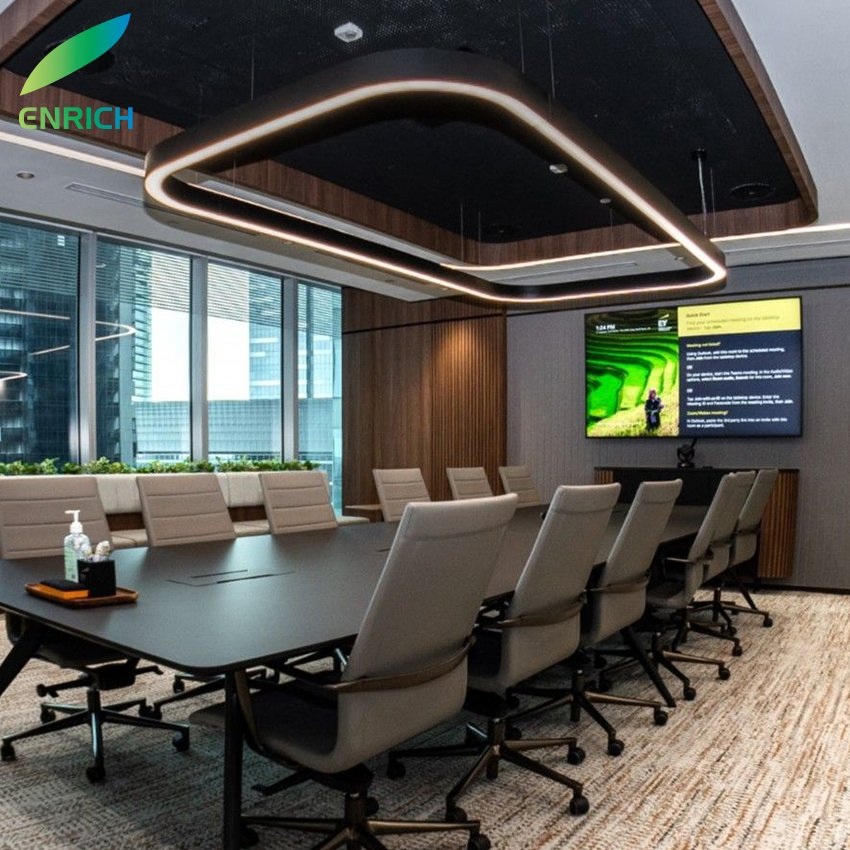

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
LC6060-F600/1000
Style
European
Irradiated Area
≥30m²
IP Rating
IP33
Certification
CE, EMC, RoHS, SAA
Voltage
AC85-265V
Beaming Angle
120°
LED Chips
Epistar SMD 2835 - 504PCS
Wattage
20W/M
Luminous Efficiency
100lm/W
CRI
>80/90
Lifespan
50000 (h)

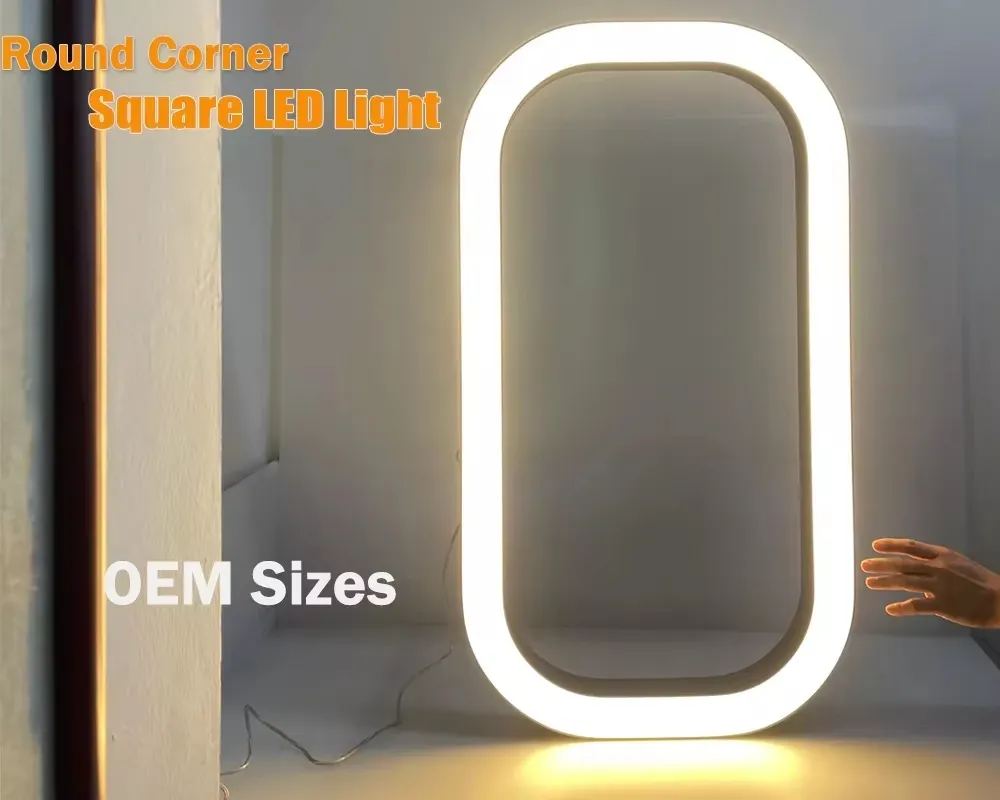

LED Linear Light
Product Features
  • No dark area, lighting uniformly, excellent heat dissipation performance
  • High Efficacy: 100lm/w ±5%
  • Material: 1.5mm thick extrusion aluminum profile housing, frosted PC cover
  • High CRI: Ra>80 (standard), Ra>90 (upgrade available)
  • Certified driver, flicker-free, build-in, power factor>0.9
  • LED PCB board: SMD2835, L80B10(Ta=25ºC)>50000hrs long lifespan
  • Available in multiple sizes and customizable dimensions
  • Warranty: 5 years

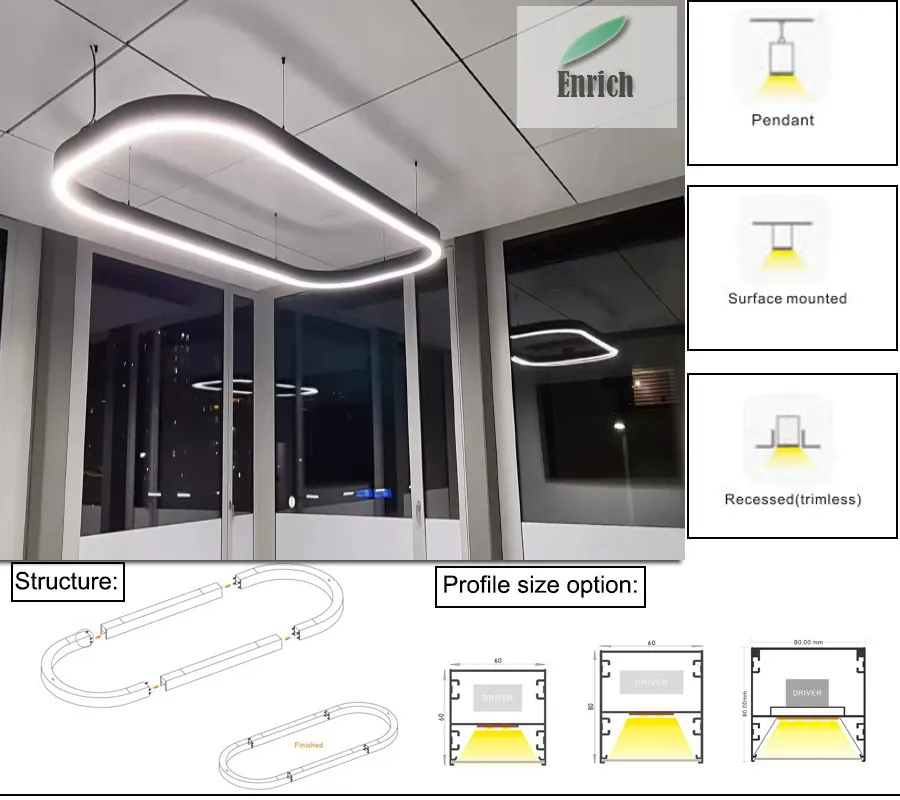

Specification Image
Technical Parameters
Model Voltage Size (mm) Power Efficiency
LC6060-B-900AC220-240VL900*W90050W100lm/w
LC6060-B-1032AC220-240VL1032*W103260W100lm/w
LC6060-B-1200AC220-240VL1200*W120070W100lm/w
LC6060-B-3000/600AC220-240VL3000*W600136W100lm/w
LC6060-B-3000/1200AC220-240VL3000*W1200160W100lm/w

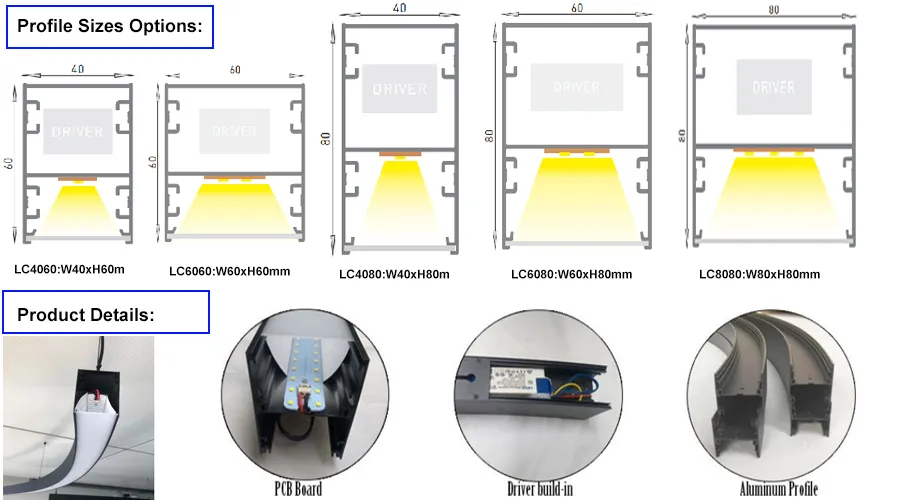

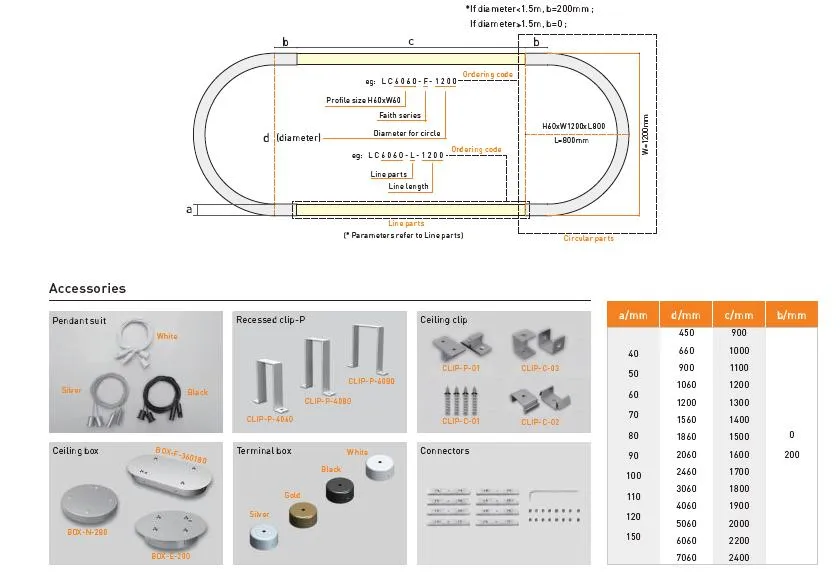

Product Detail Dimensions

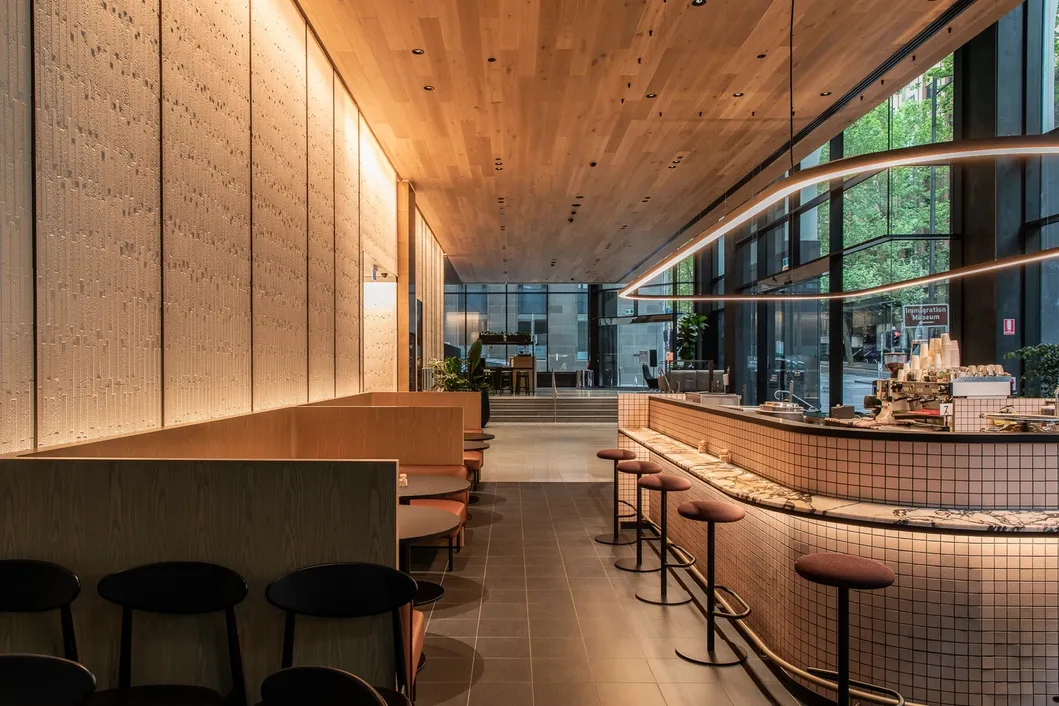

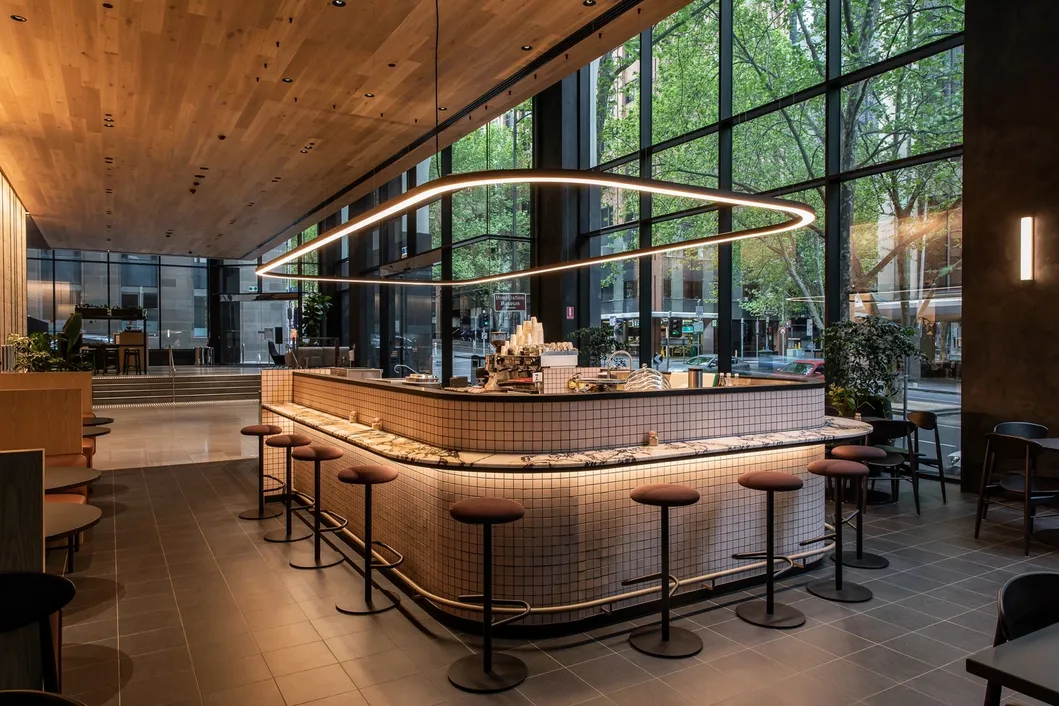

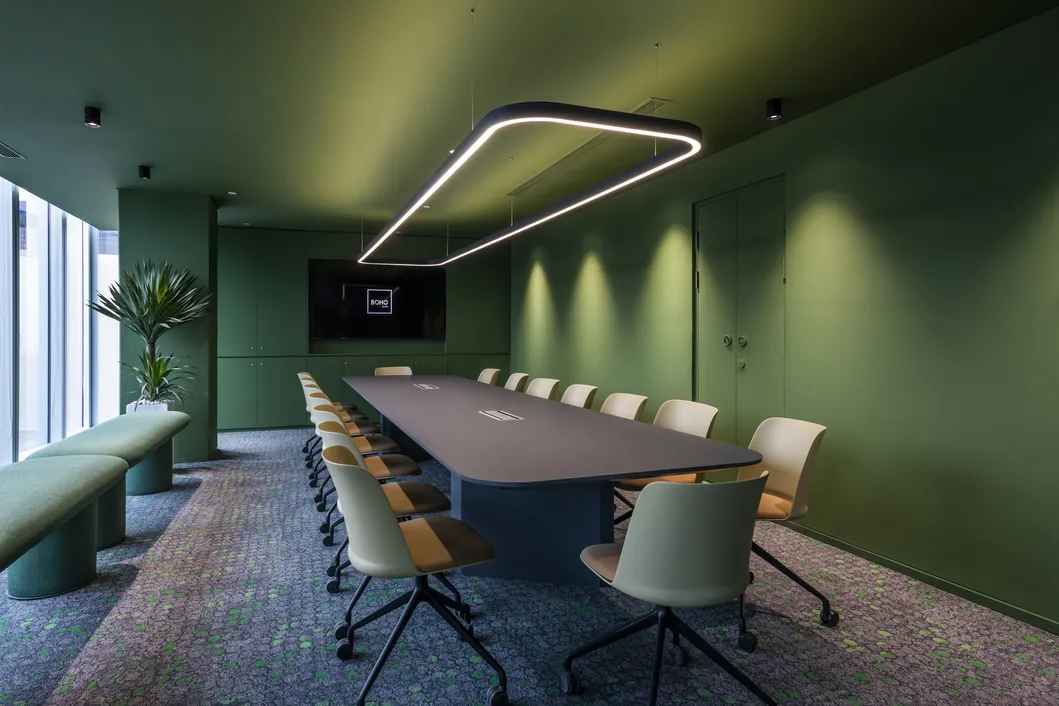

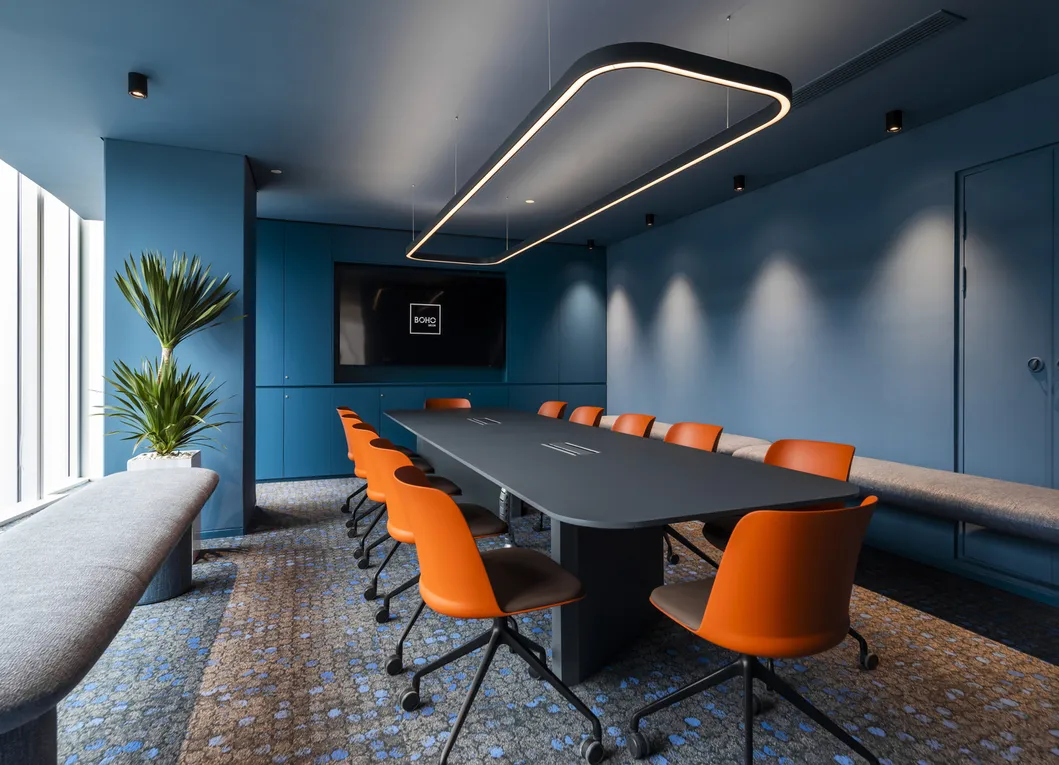

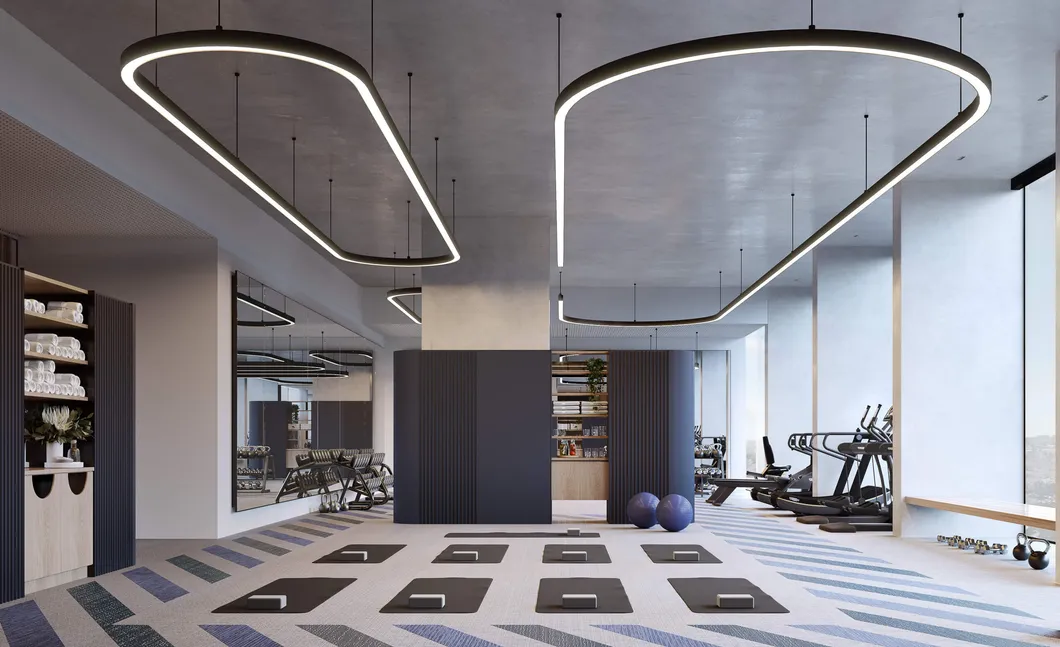

Applications & Gallery

Widely used in shopping malls, stores, offices, gyms, schools, hotels, and residential spaces.

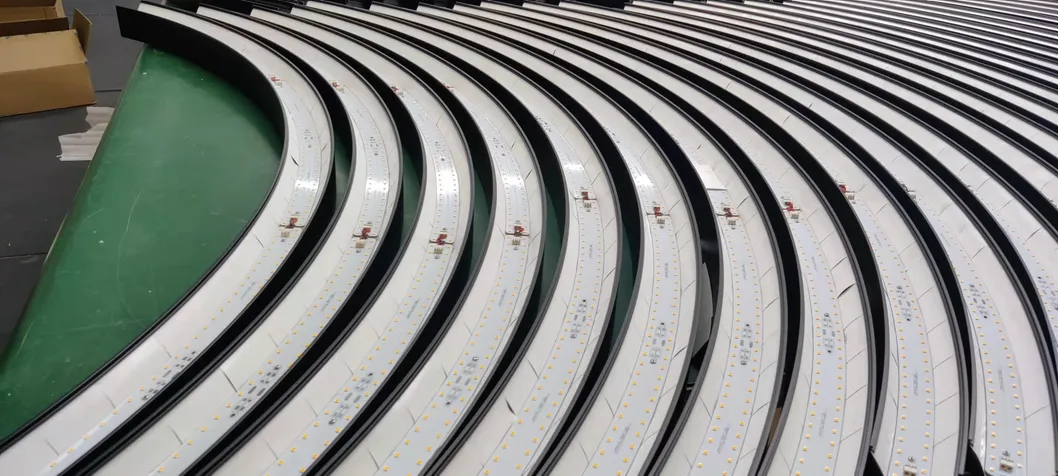

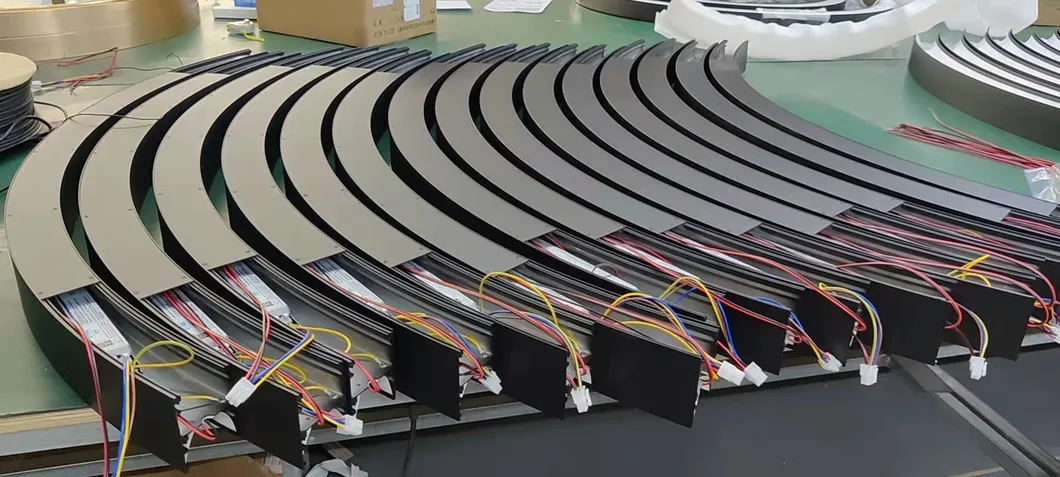

Our Production Line
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 25.00cm
Gross Weight
6.000kg
Transport Package
Outer Carton
Package
Frequently Asked Questions
Q1: What materials are used for the housing?
The light features a 1.5mm thick extrusion 6063-T5 aluminum profile housing with a frosted PC cover for optimal durability and light diffusion.
Q2: Can the size of the linear light be customized?
Yes, we accept OEM designs and any shapes based on your project requirements. Standard sizes range from 600mm to 5000mm.
Q3: What is the warranty period for this product?
This LED linear light comes with a comprehensive 5-year warranty.
Q4: Are there different color options for the shell?
Standard colors include White, Black, and Silver. Golden or other custom colors are available upon request.
Q5: What certifications does the product hold?
The lights are certified by CE, EMC, RoHS, and SAA, ensuring compliance with international safety and quality standards.
Q6: What is the average lifespan of the LEDs?
The LED PCB board uses SMD2835 chips with a rated lifespan of over 50,000 hours (L80B10 at 25ºC).
