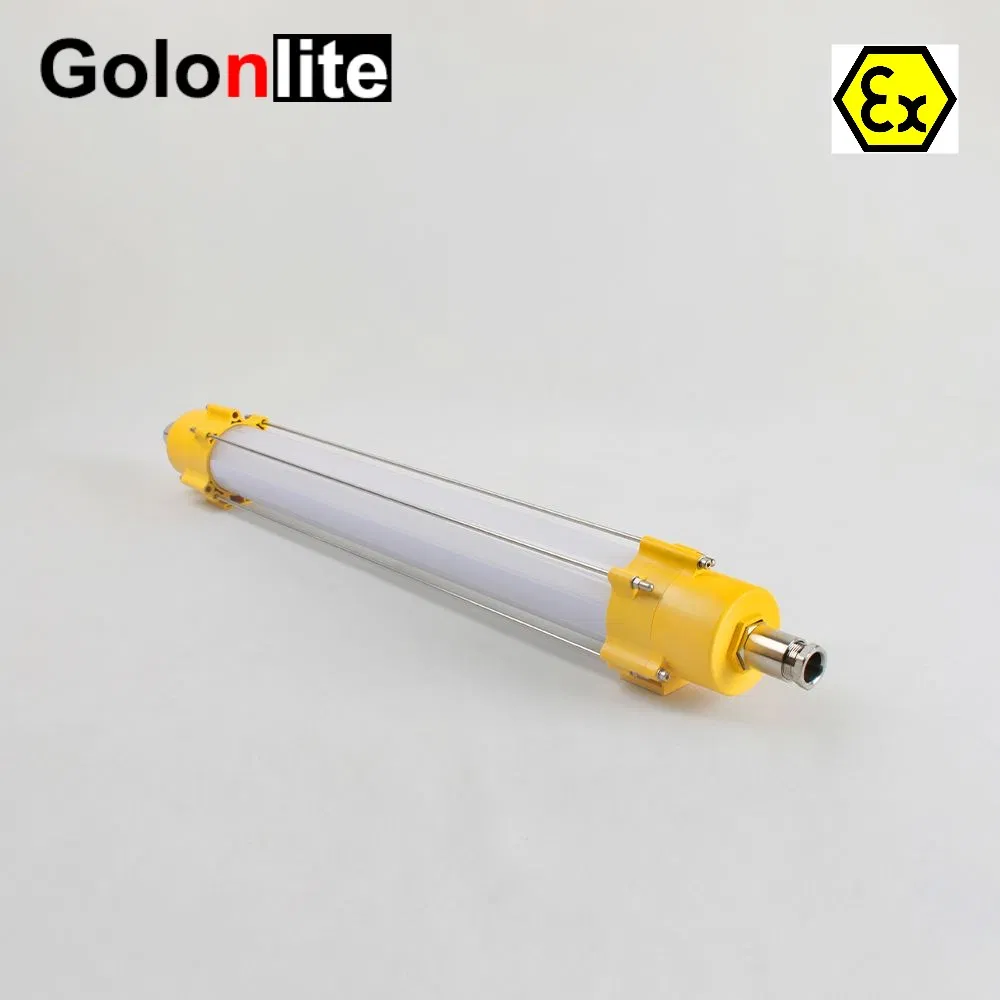

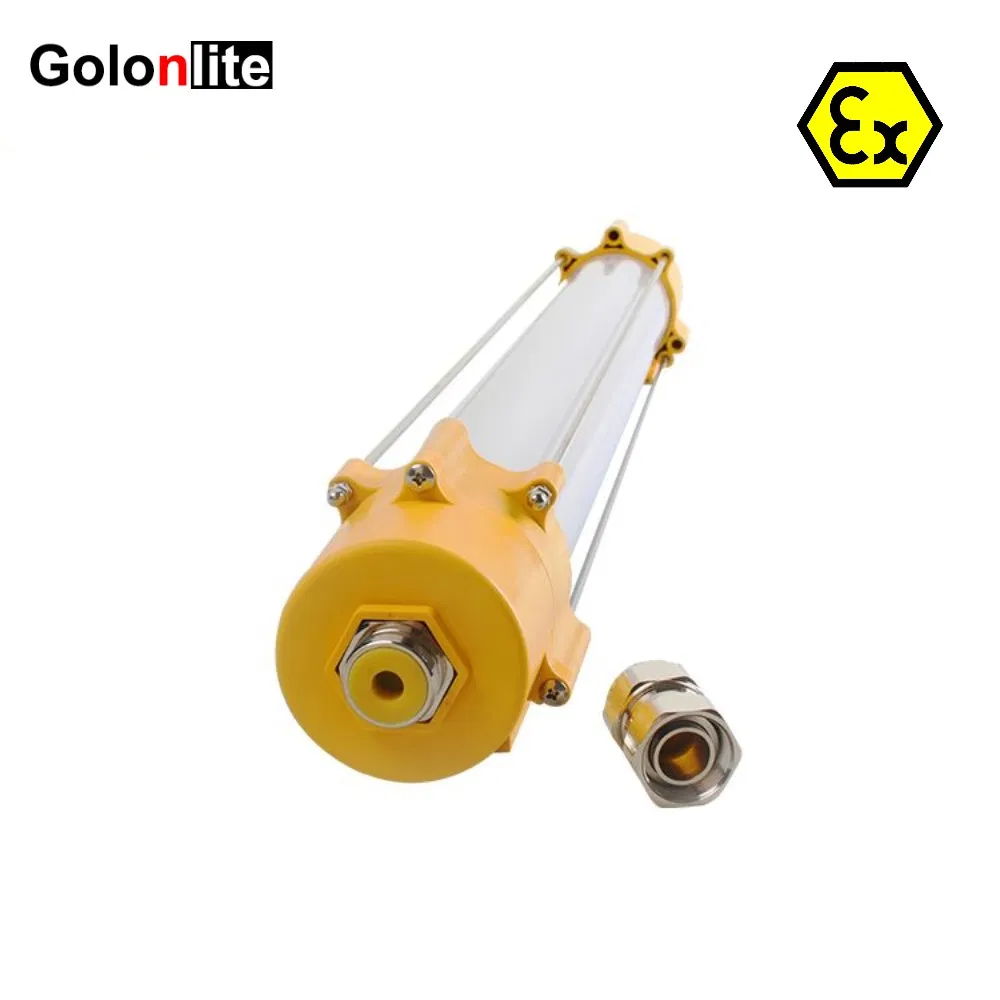

LED Explosion Proof Linear Lighting Fixture for Industrial IP69K

1 / 5

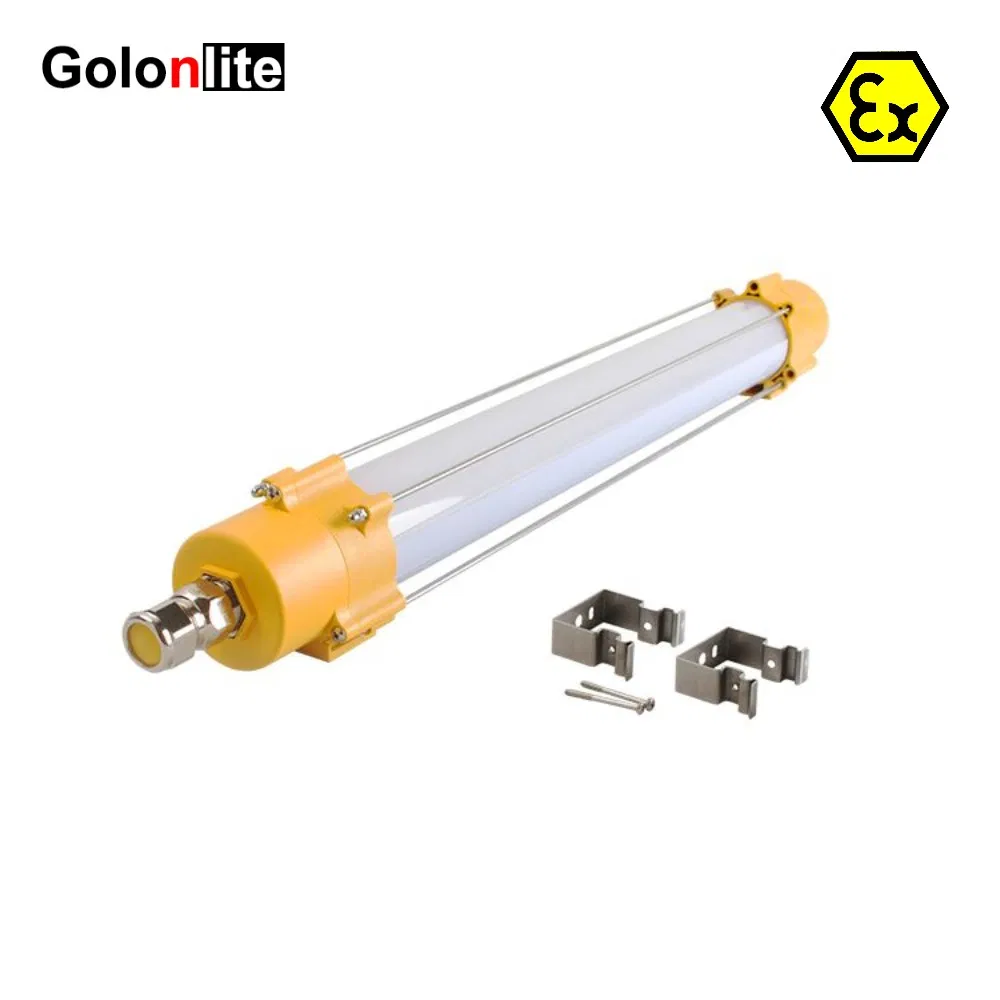

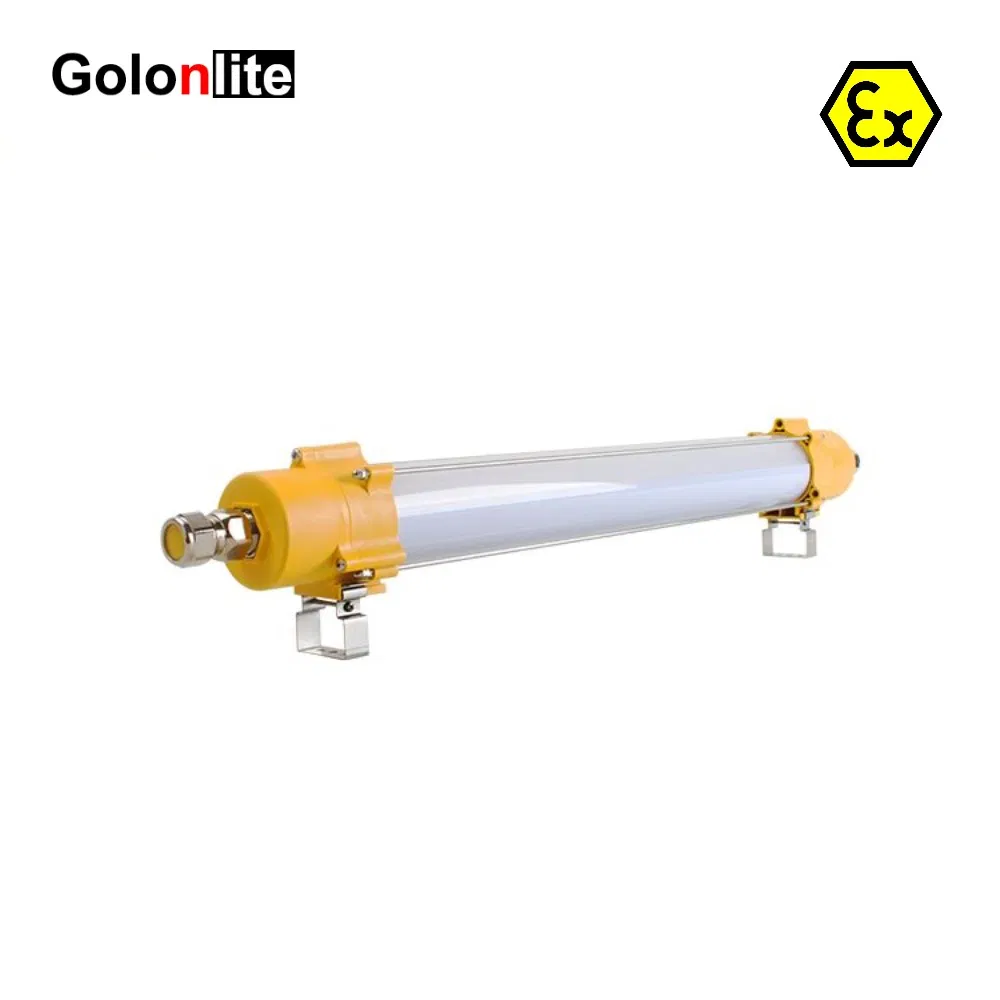

LED Explosion Proof Linear Lighting Fixture for Industrial IP69K

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Item Name:IP69K LED Explosion Proof Lighting Fixture

IP Grade:IP69K IK10 IP66

Efficiency:150lm/W

Material:Aluminum Housing + PC Cover

Dimmable:1-10V / PWM / Dali Options

Emergency:3 Hours Function Available

Life Span:>50,000 Hrs

CRI:Ra>80, Sdcm<4

Product Description

LED explosion proof linear lighting fixture for industrial IP69K

Dialux lighting study available. High efficiency solutions for hazardous environments.

Parameter	Details

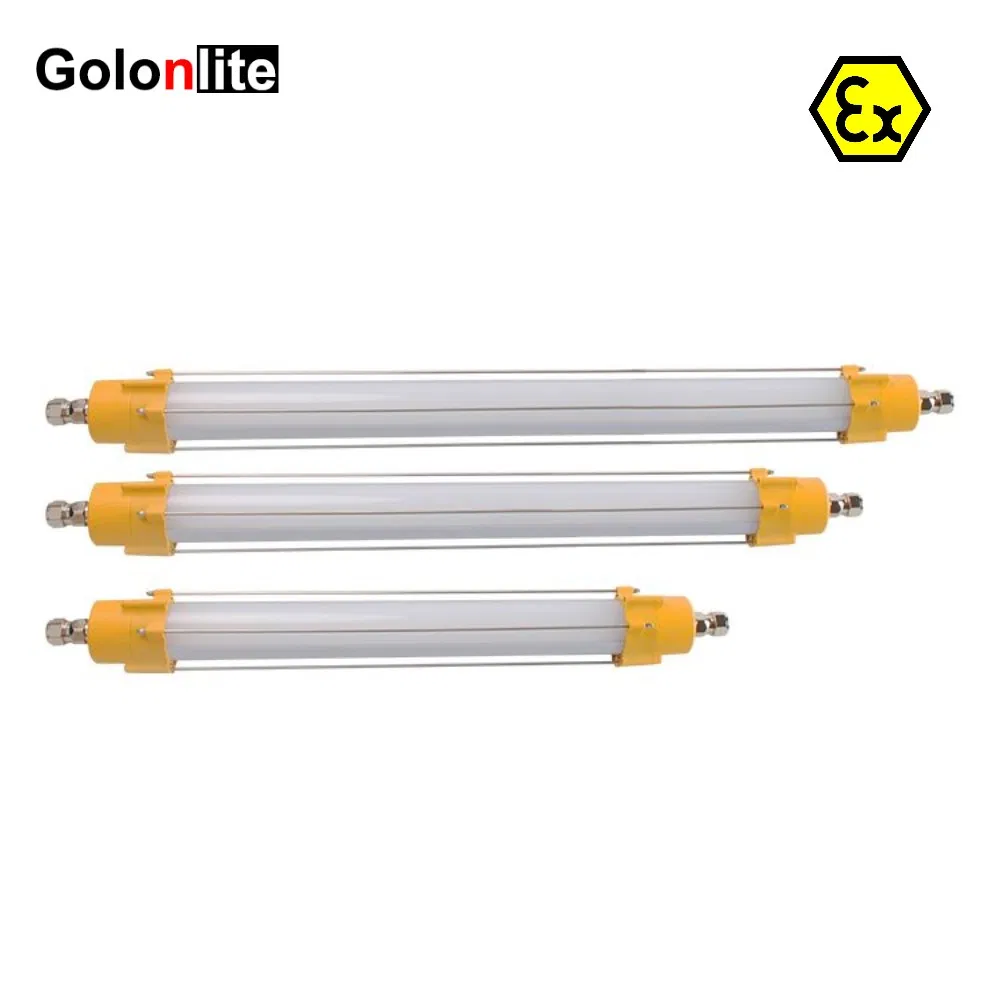

Item No.	GL-EX-20W-60S / 30W-90S / 36W-120S
Luminous Efficiency	150 Lm/W
CCT(K)	2700K - 6500K
Power Supply	ENEC Certified Flicker Free, THD<15%
Input Voltage	100-277V 50/60Hz
Beam Angle	180°
Protection	IP69K, IK10, ATEX, CE, RoHS

Key Features

ATEX Marking: Ex ll 3G Ex ec llC T5/T6 Gc | Ex lI 3D Ex tc IIIC T85…T100 Dc

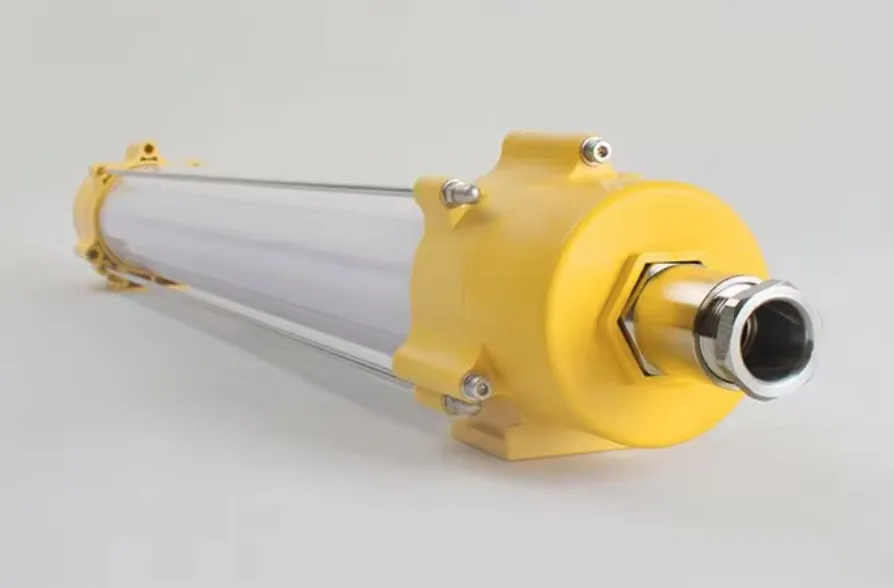

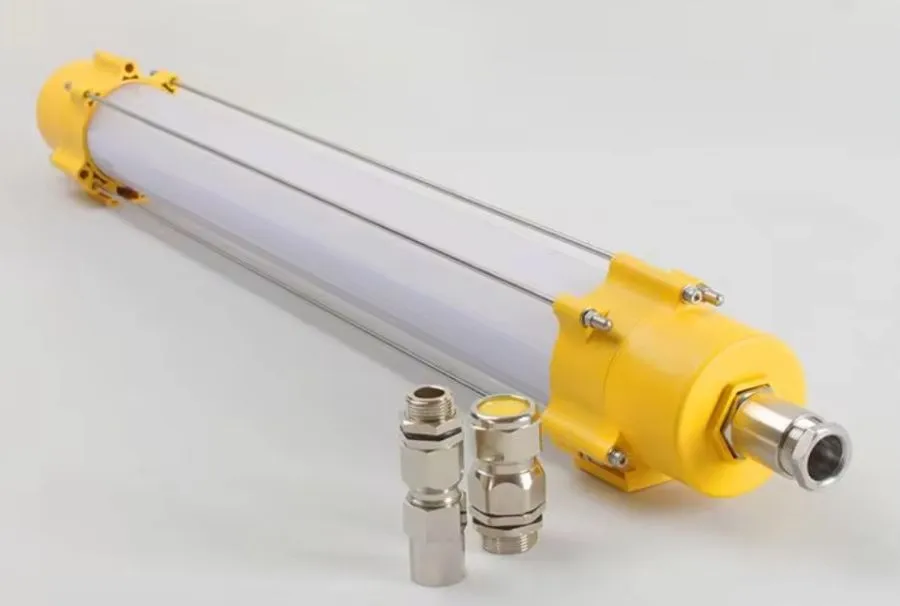

Durability: High-strength PC Dual Color Housing with PA66 + Fibreglass Endcaps
High Efficacy: 150lm/w ±10% with High Power Factor >0.95

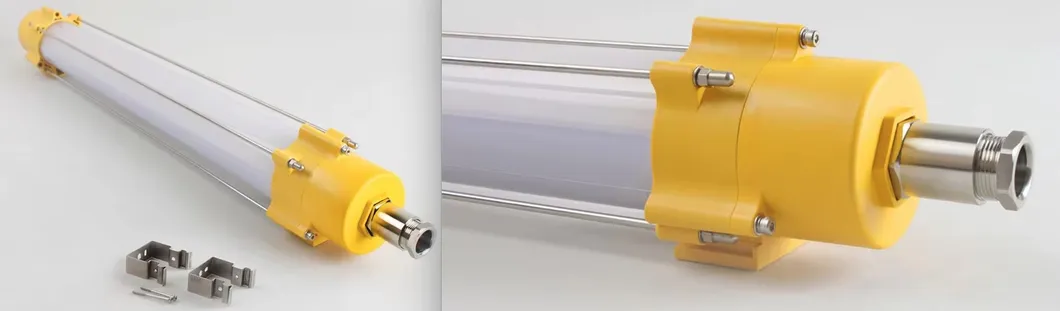

Maintenance: Suspending & Ceiling mounted for convenient installation
Reliability: L80B10(Ta=25ºC) >50,000hrs with 5 years warranty

Applications

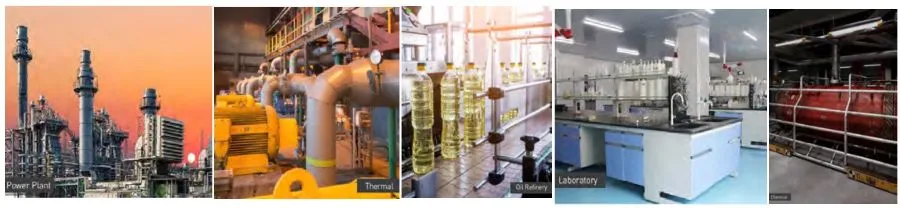

Thermal / Oil Refinery / Power Plant / Chemical / Laboratory / Construction Sites / Outdoor Facilities.

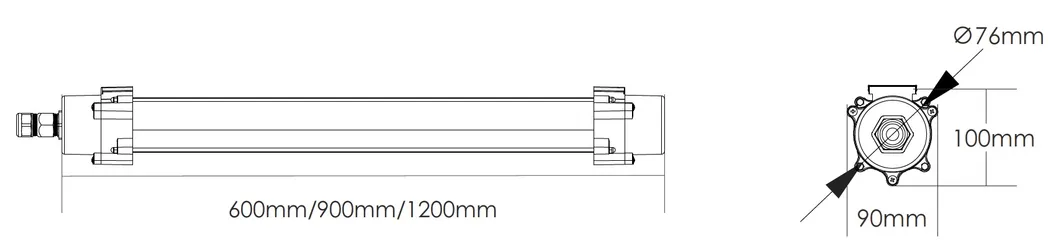

Technical Dimensions

Quality Assurance

Experienced manufacturer providing integrated research, development, and design for industrial LED fixtures since 2009. Providing high-standard solutions for global commercial and industrial needs.

Frequently Asked Questions

Q1: What are the main certifications for this lighting fixture? A: The fixture is IP69K, IK10 approved, and carries ATEX, CE, and RoHS certifications for hazardous environment safety.

Q2: How long is the warranty and expected lifespan? A: We offer a 5-year warranty. The LEDs have a lifespan of over 50,000 hours (L80B10).

Q3: Are there different dimming options available? A: Yes, the fixture supports 0-10V, PWM, Resistance, and DALI dimmable functions.

Q4: What mounting options are available for installation? A: The fixture supports both suspending and ceiling-mounted installation for flexibility in various settings.

Q5: Is a lighting simulation/study available for projects? A: Yes, we provide free Dialux lighting design studies and IES files to help plan your installation.

Q6: What is the benefit of the IP69K rating? A: IP69K provides the highest level of protection against high-pressure and high-temperature water jets, making it ideal for intensive cleaning environments.
