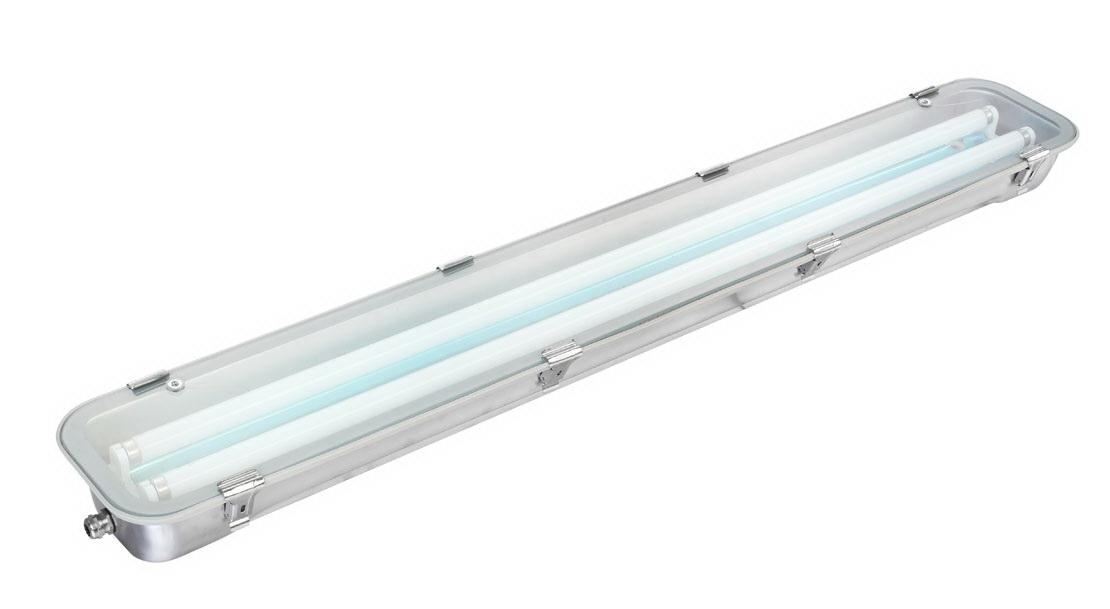

IP65 Industrial Stainless Steel Waterproof Lighting Fixture for T8 Lamp Tube

1 / 5

IP65 Industrial Stainless Steel Waterproof Lighting Fixture for T8 Lamp Tube

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

SL6236T

Interface Style

Screw Bracket

Certification

CE, CCC, RoHS, TUV, GS, ENEC, VDE

Voltage

220V

IP Class

IP65

Watt

2X36W

Fixture Material

SUS304 or SUS316 + Temper Glass

Fixture Size

1310*210*97mm

Install Way

Ceiling or Hang

Ik Grade

Ik10

Warranty

5 Years

HS Code

94054090

Packaging & Delivery

Package Size

120.00cm * 23.00cm * 20.00cm

Package Weight

2.800kg

Product Description

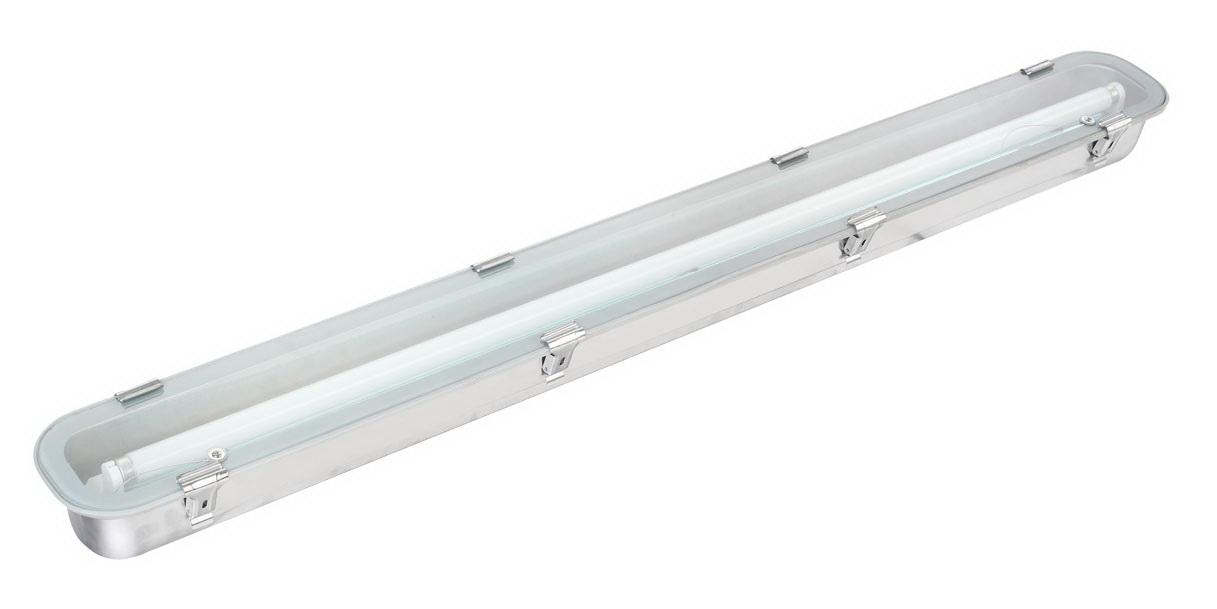

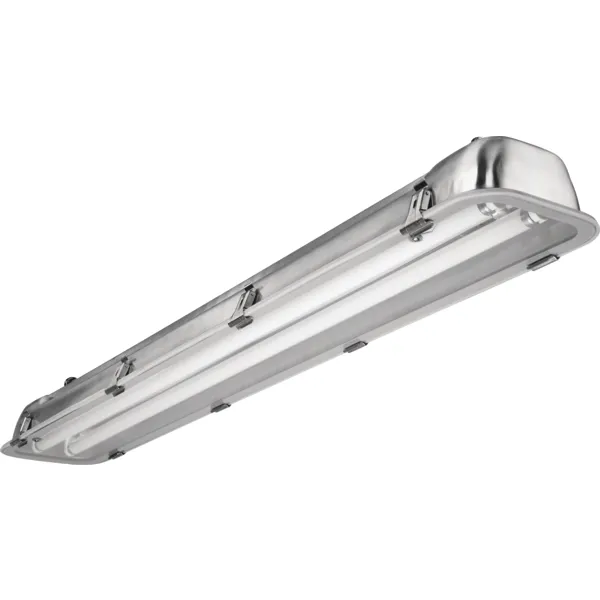

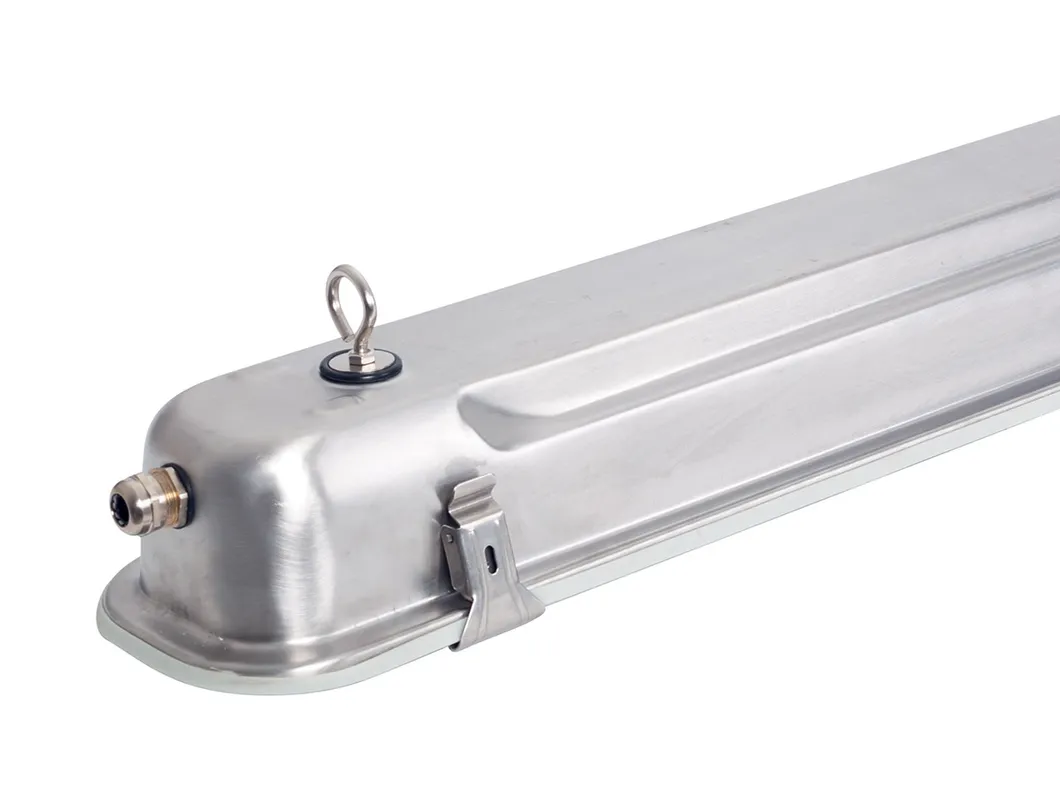

IP65 Industrial Stainless Steel Waterproof Lighting Fixture For T8 lamp tube

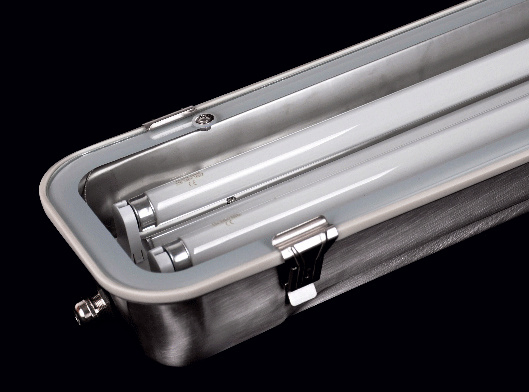

Lighting body: Stainless steel 304 or 316 material body with high impact resistance, non-deformable structure for installations in environments with vibration.

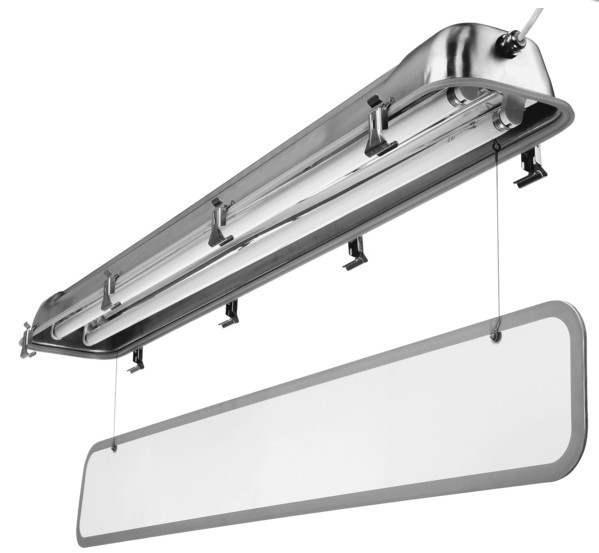

Lighting cover: High quality tempered glass safety material with 5mm on the body by means of metal clips, protects it against knocks or water flood.

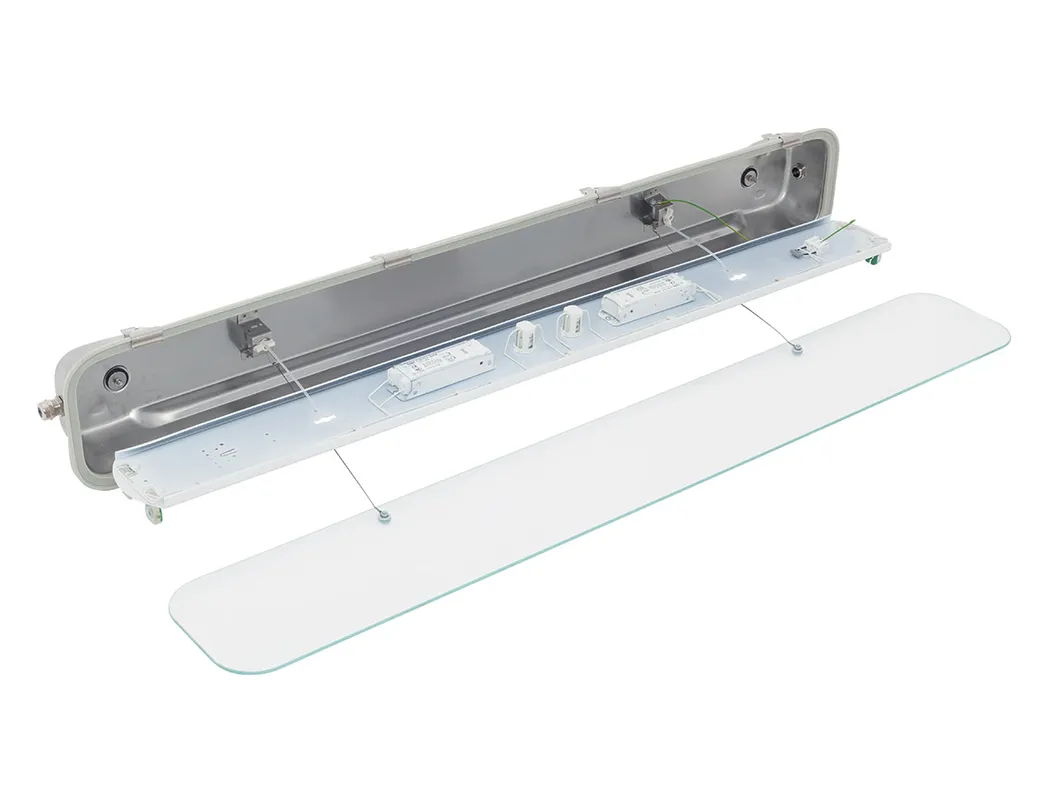

Reflector: Specular aluminium reflector or White painted metal sheet reflector ensures optional recovery of the light output, 0.45mm thick.

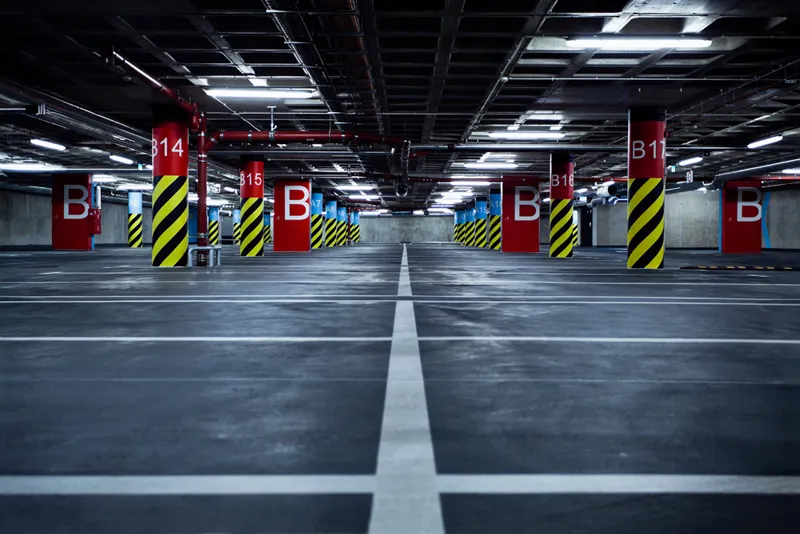

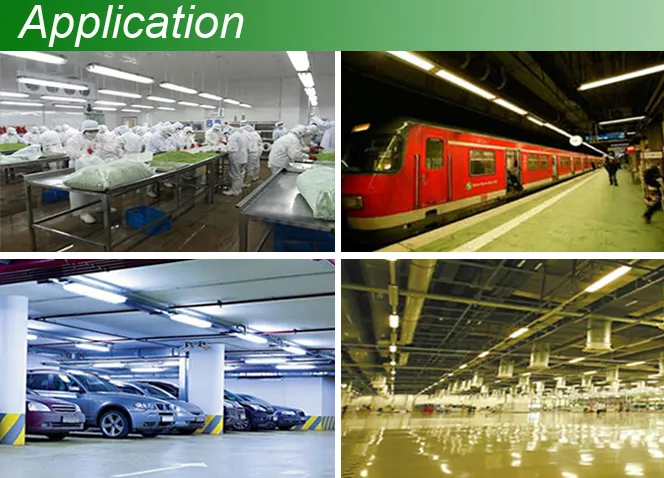

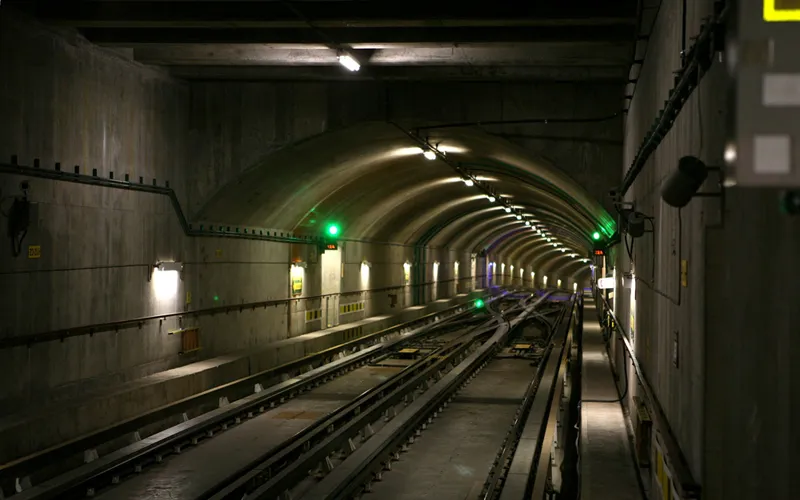

Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, pharmaceutical factories, garages, and industrial complex.
Operating voltage: 110V ~ 130V, 220V ~ 240V, 50Hz ~ 60Hz.
Operating temperature: -20C ~ 50C
IP rating: IP65, outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.

Item No.	Watt	Lamp Holder	QTY Clips	IP Rating	Product Size (MM)	Carton Size (MM)
SL6118T	1X18W	G13	6	IP65	710x140x97	760170145
SL6218T	2X18W	G13	6	IP65	710x210x97	760240145
SL6136T	1X36W	G13	8	IP65	1310x140x97	1360170145
SL6236T	2X36W	G13	8	IP65	1310x210x97	1360240145
SL6158T	1X58W	G13	10	IP65	1610x140x97	1660170145
SL6258T	2X58W	G13	10	IP65	1610x210x97	1660240145

Frequently Asked Questions

What materials are used for the lighting fixture body?

The body is constructed from high-quality Stainless Steel 304 or 316, providing excellent impact resistance and structural stability for industrial environments.

Is this fixture suitable for outdoor or wet environments?

Yes, the fixture has an IP65 rating, making it waterproof, dustproof, and ideal for humid or corrosive environments like swimming pools and chemical plants.

What type of lamp tubes can be installed in this fixture?

It supports T8 or T5 lamp tubes, including both traditional fluorescent tubes and modern LED-tube variants in single or double configurations.

What is the IK rating of this lighting product?

This fixture features an IK10 grade, which indicates a high level of protection against external mechanical impacts.

How long is the warranty period offered?

We provide a 5-year warranty on this industrial lighting fixture, ensuring long-term reliability and performance.

Are different sizes and wattages available?

Yes, we offer multiple lengths from 600mm to 1500mm with wattages ranging from 1x18W up to 2x58W to suit various installation requirements.
