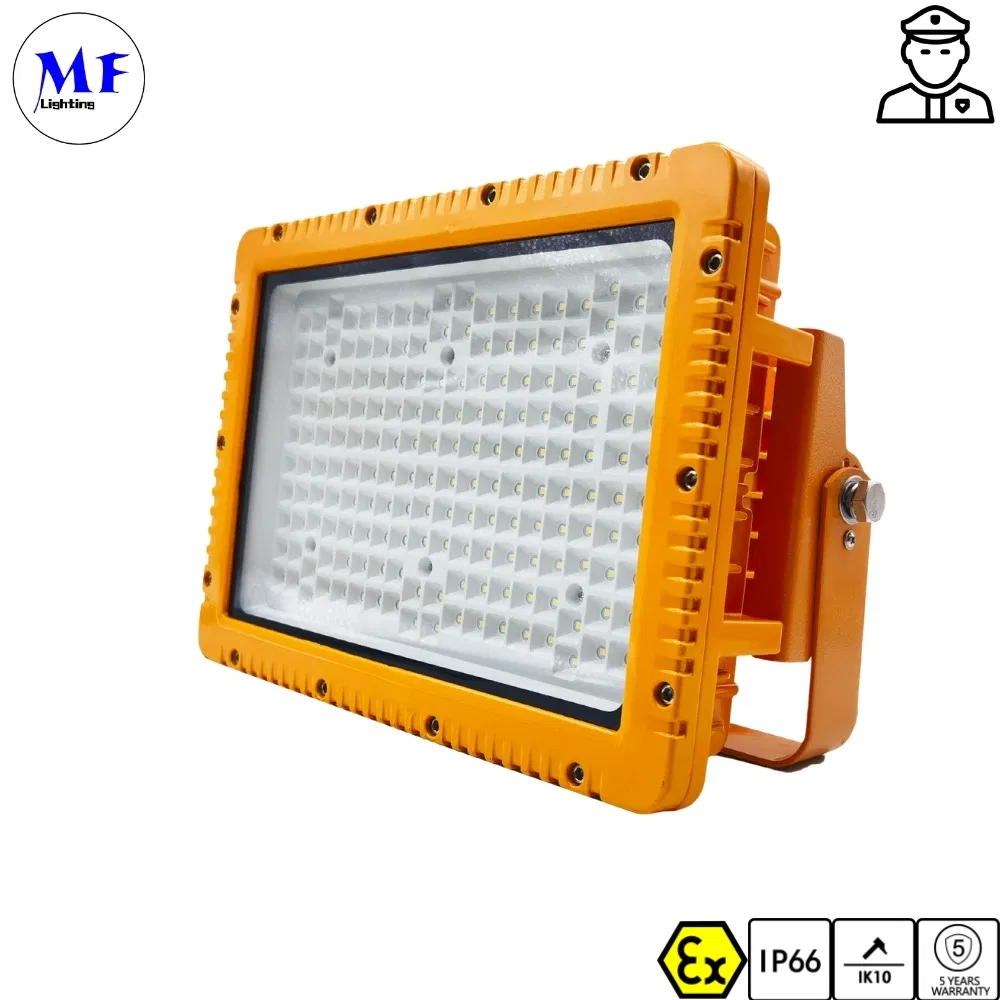

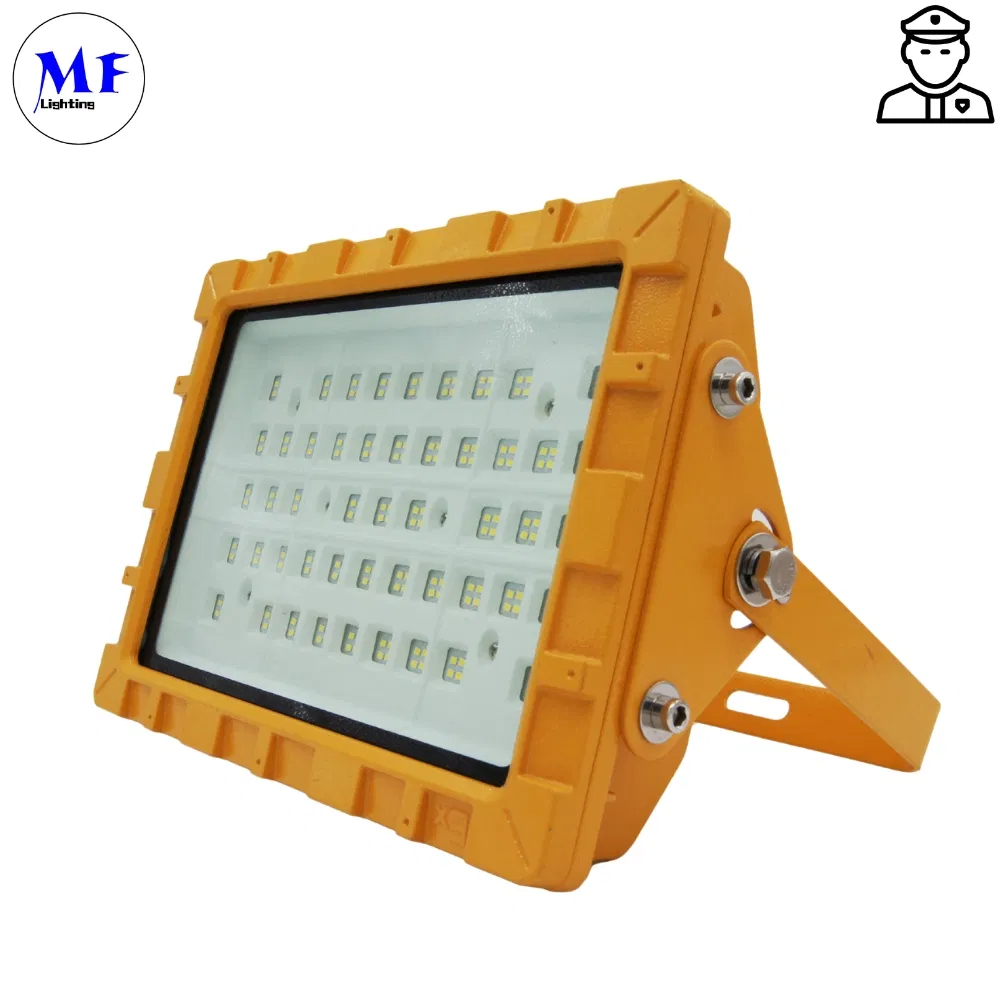

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard

1 / 5

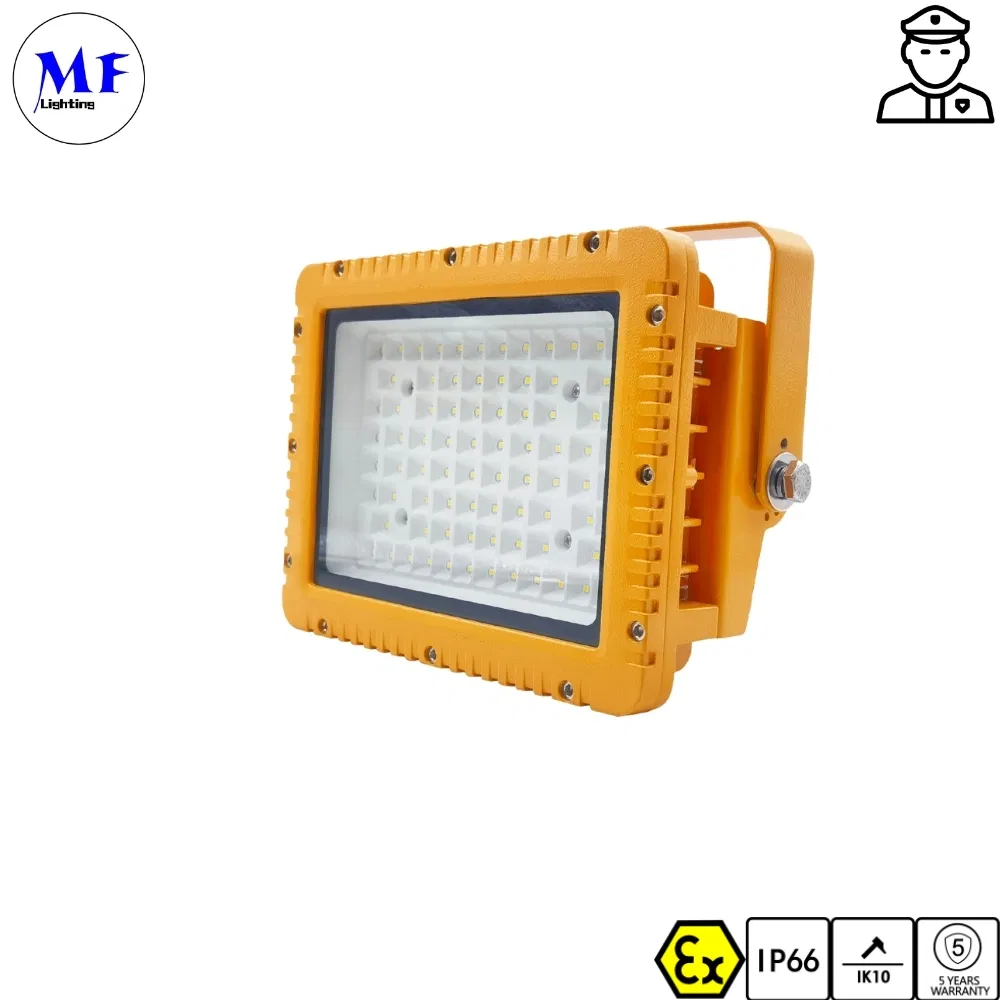

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Specifications

Model:MF Security Man 5

Input Voltage:AC200-250V/DC12-48V

Power Range:30W - 240W

Luminous Flux:140lm/W

IP Rate:IP66 / IK10

Certifications:ATEX, IECEx, CE, RoHS, ETL

Lifespan:>50,000 hours

Warranty:5 Years

💡

Key Features

Working Temperature: -40°C ~ +55°C
High quality SMT LED with heavy-duty impact resistance

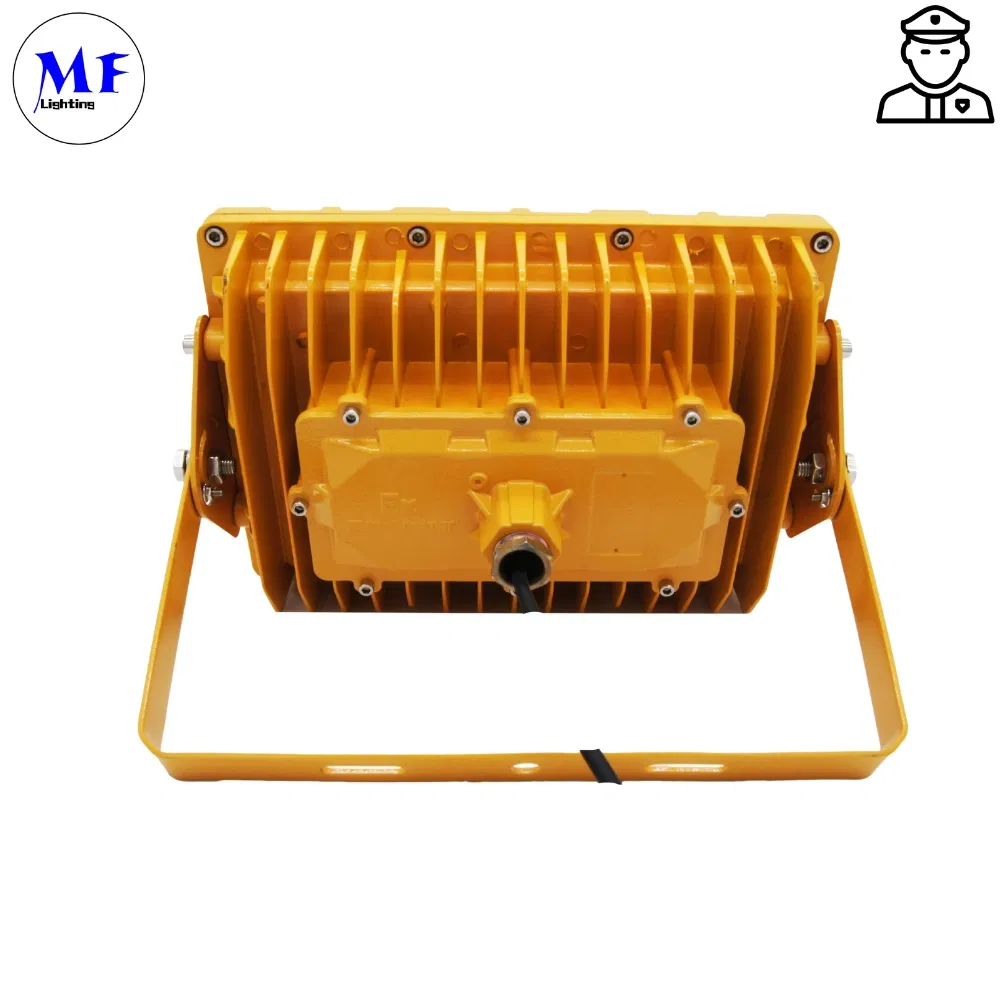

Replaceable LED board and drivers with integrated junction box
Dimmable and battery back-up functions available
Marine-rated powder coated finish
Various installation methods for diverse applications
Interchangeable glass or polycarbonate lenses for different beam angles

🛡️

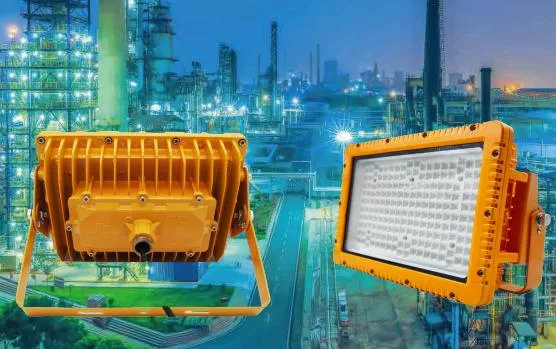

Hazardous Area Markings

ATEX/IECEx: II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db IP66

North American: Class I, Division 2, Groups A-D; Class II, Div 1 & 2; Class III

Marine: UL 1598, UL 1598A, ABS Rating

📋

Technical Specifications

Product Number	Wattage	Color Temp	Voltage	Lumens	CRI	Emergency
EX-30W/50W/60W	30W-60W	2200K-7000K	AC200-250V	4200-8400	70	3 Hours
EX-80W/100W	80W-100W	2200K-7000K	AC200-250V	11200-14000	70	3 Hours
EX-150W/180W/200W	150W-200W	2200K-7000K	AC200-250V	21000-28000	70	3 Hours
EX-240W	240W	2200K-7000K	AC200-250V	33600	70	3 Hours

📐

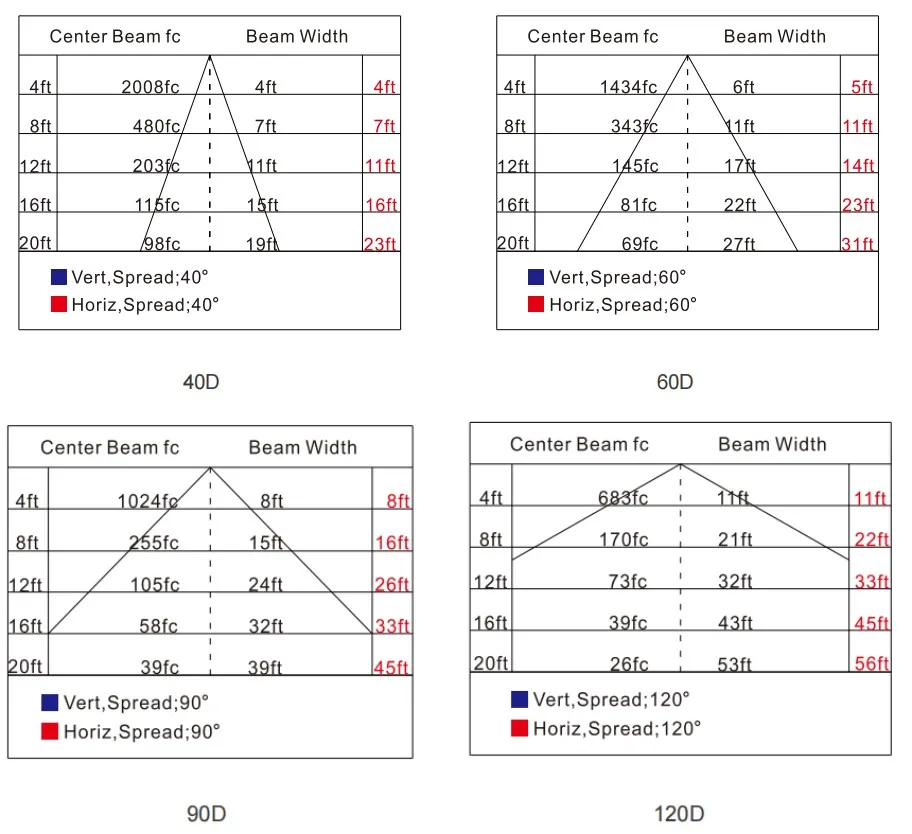

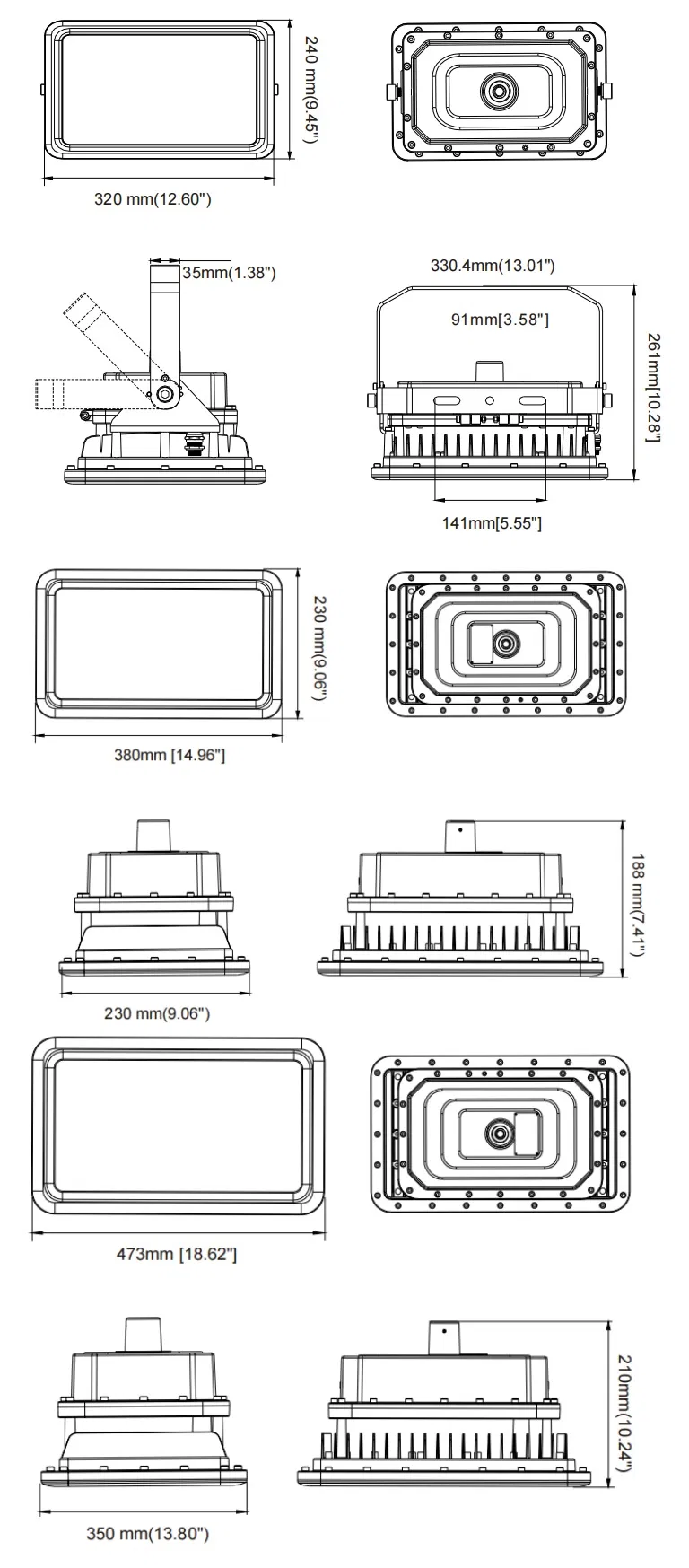

Distribution & Dimensions

🔧

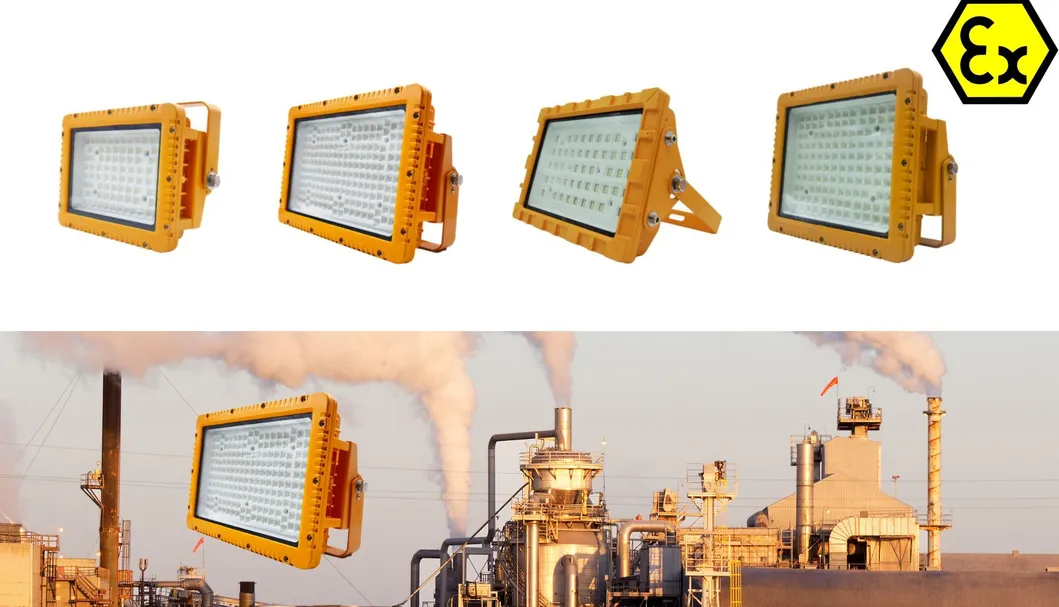

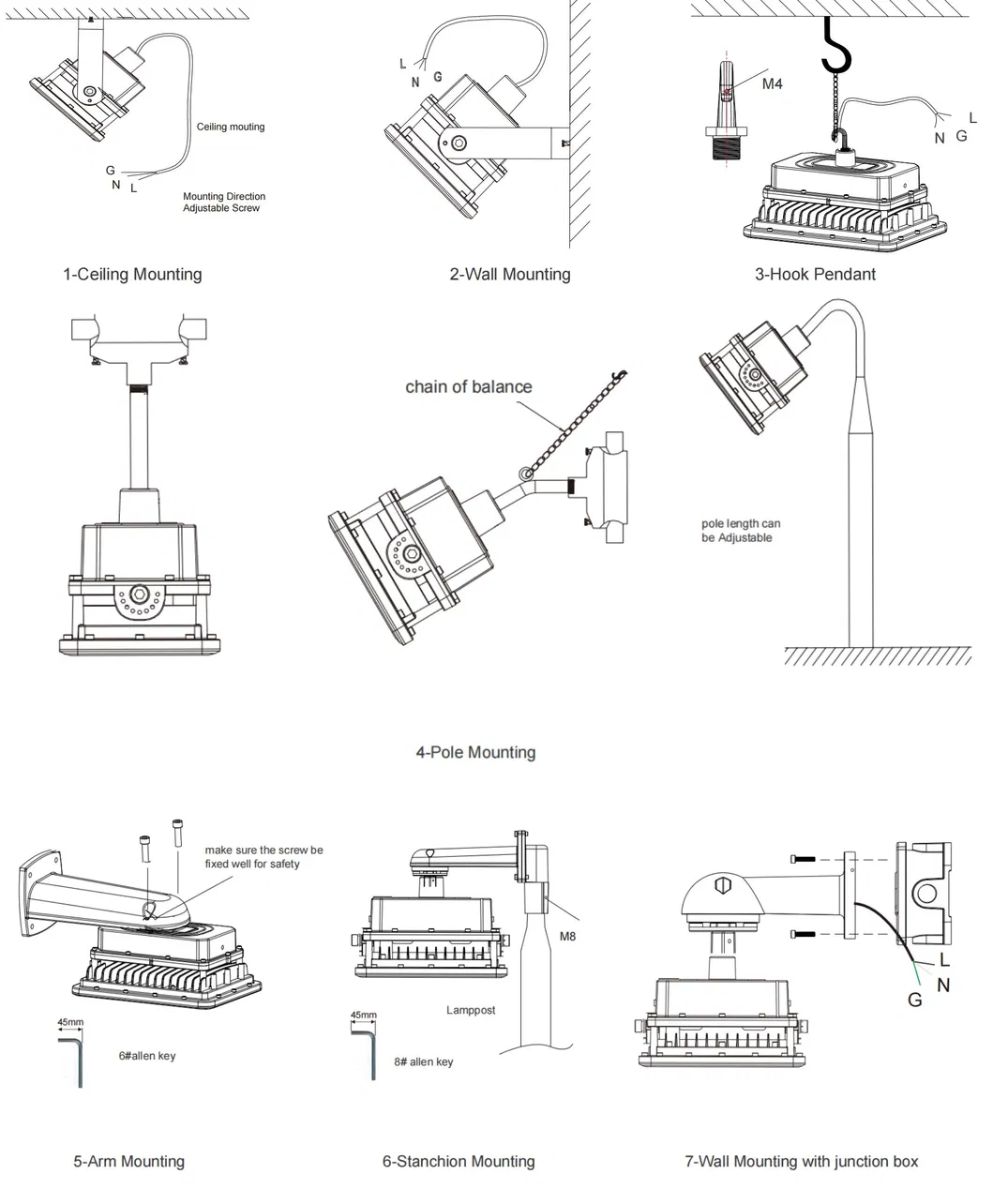

Mounting & Applications

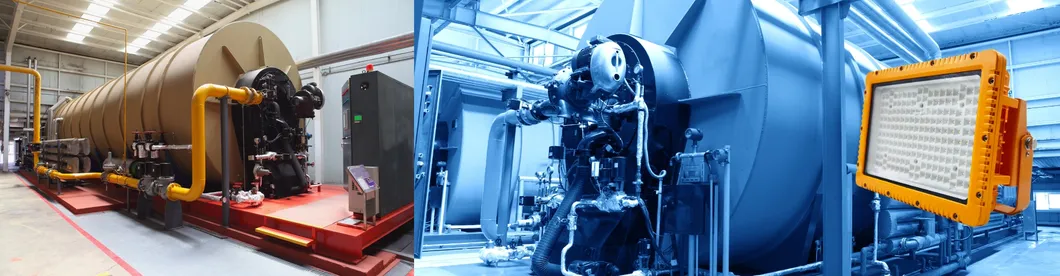

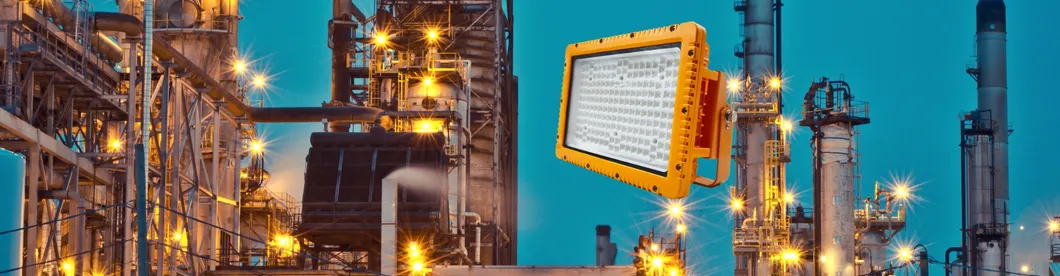

Oil & Gas: Refining, loading, transport, and storage facilities.

Chemical: Paint facilities, chemical production, and storage.

Metal: Steel/aluminum factories, smelting, and foundry fabrication.

Marine: Ocean platforms, vessels, and structures.

Food: Flour mills, distilling, and alcohol industry production.

📦

Packaging Information

Model	Qty/Carton	Packing Size (mm)	N.W (KG)	G.W (KG)
M Series	1 pc	460490290	12.5	15.0

Frequently Asked Questions

Q1: What are the main explosion-proof certifications for this flood light?

The light is certified with ATEX, IECEx, and North American UL844 ratings, including Class I Division 2 and Class II Division 1 & 2.

Q2: Can the LED board or drivers be replaced?

Yes, the design allows for replaceable LED boards and drivers to extend the maintenance life of the fixture.

Q3: Is this light suitable for marine or offshore environments?

Absolutely. It features a marine-rated powder coated finish and is IP66 dustproof and waterproof, specifically designed for marine offshore use.

Q4: What is the warranty period and expected lifespan?

The product comes with a 5-year warranty and a lifespan exceeding 50,000 working hours.

Q5: Does the light support emergency functions?

Yes, models are available with an emergency battery backup function providing up to 3 hours of illumination.

Q6: What beam angles are available?

Beam angles can be adjusted using different glass or polycarbonate lens options to suit specific lighting requirements.
